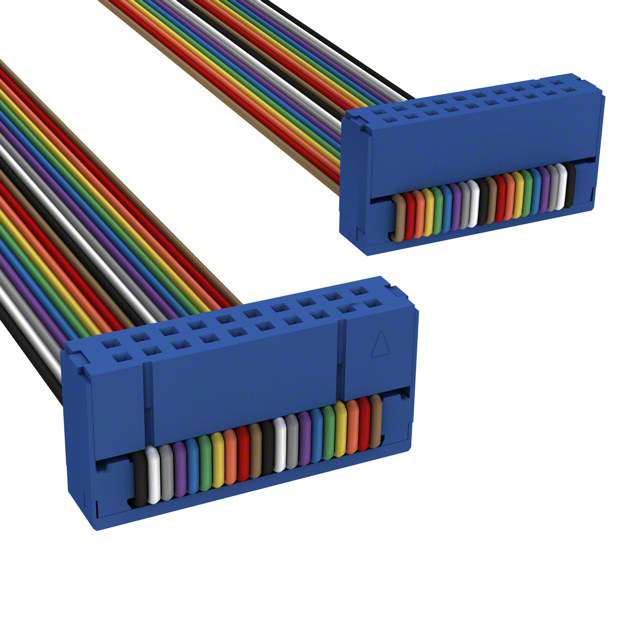

C3BBS-2006M

Obsolete

IDC CABLE - CSR20S/AE20M/CSR20S

Obsolete

IDC CABLE - CSR20S/AE20M/CSR20S

Description

General part information

20 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")

Parameters and characteristics for this part

Part	Number of Positions	Length	Cable Termination	Connector Type	Number of Rows	Pitch - Connector	Color	Shielding	Features	Pitch - Cable	Contact Finish Thickness	Contact Finish
CW Industries C3BBS-2006M	20	0.5 ft	IDC	Socket to Socket	2	0.1 in	Multiple Ribbon	Unshielded	Strain Relief	0.05 in	100 µin	Tin
CW Industries C3BBS-2036M	20	3 ft	IDC	Socket to Socket	2	0.1 in	Multiple Ribbon	Unshielded	Strain Relief	0.05 in	100 µin	Tin
CW Industries C3BBS-2606G	26	0.5 ft	IDC	Socket to Socket	2	0.1 in	Gray Ribbon	Unshielded	Strain Relief	0.05 in	100 µin	Tin
CW Industries C3BBS-2006G	20	0.5 ft	IDC	Socket to Socket	2	0.1 in	Gray Ribbon	Unshielded	Strain Relief	0.05 in	100 µin	Tin
CW Industries C3BBS-2636M	26	3 ft	IDC	Socket to Socket	2	0.1 in	Multiple Ribbon	Unshielded	Strain Relief	0.05 in	100 µin	Tin
CW Industries C3BBS-2036G	20	3 ft	IDC	Socket to Socket	2	0.1 in	Gray Ribbon	Unshielded	Strain Relief	0.05 in	100 µin	Tin
CW Industries C3BBS-2018M	20	1.5 ft	IDC	Socket to Socket	2	0.1 in	Multiple Ribbon	Unshielded	Strain Relief	0.05 in	100 µin	Tin
CW Industries C3BBS-2018G	20	1.5 ft	IDC	Socket to Socket	2	0.1 in	Gray Ribbon	Unshielded	Strain Relief	0.05 in	100 µin	Tin
CW Industries C3BBS-2606M	26	0.5 ft	IDC	Socket to Socket	2	0.1 in	Multiple Ribbon	Unshielded	Strain Relief	0.05 in	100 µin	Tin
