796207-1

Active

TE Connectivity AMP Connectors

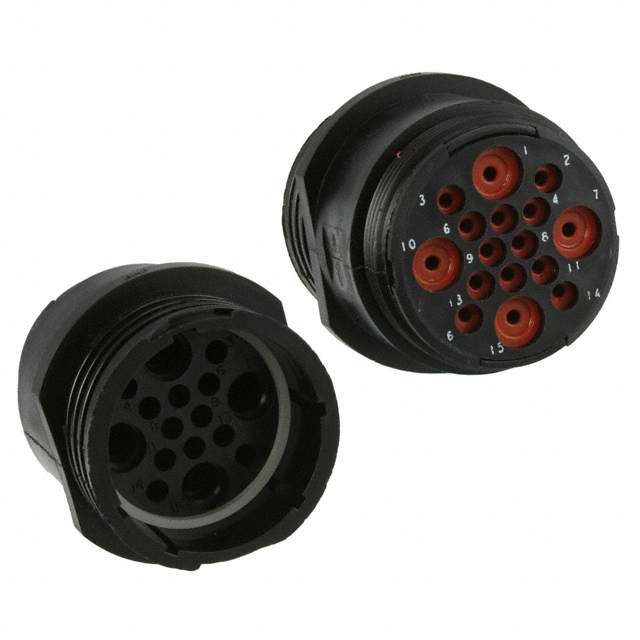

CONN RCPT HSG MALE 16POS INLINE

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG MALE 16POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	796207-1

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16, 8
Contact Type	Crimp
Housing Color	Black
Ingress Protection	IP67, IP65
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions [custom]	4
Number of Positions [x]	12
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Shielding	Unshielded
Type	For Male Pins

CONN RCPT HSG MALE 16POS INLINE

Part	Mounting Type	Note	Orientation	Insert Material	Ingress Protection	Contact Type	Type	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions [x]	Number of Positions [custom]	Material Flammability Rating	Shielding	Connector Type	Contact Shape	Contact Size
TE Connectivity AMP Connectors 796207-1	Free Hanging (In-Line)	Contacts Not Included	Keyed	Thermoplastic	IP65, IP67	Crimp	For Male Pins	Black	105 ░C	-55 °C	12	4	UL94 V-0	Unshielded	Receptacle Housing	Circular	8, 16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 (12 + 4 Power) Position Circular Connector Receptacle Housing Free Hanging (In-Line)

Technical documentation and resources

No documents available
