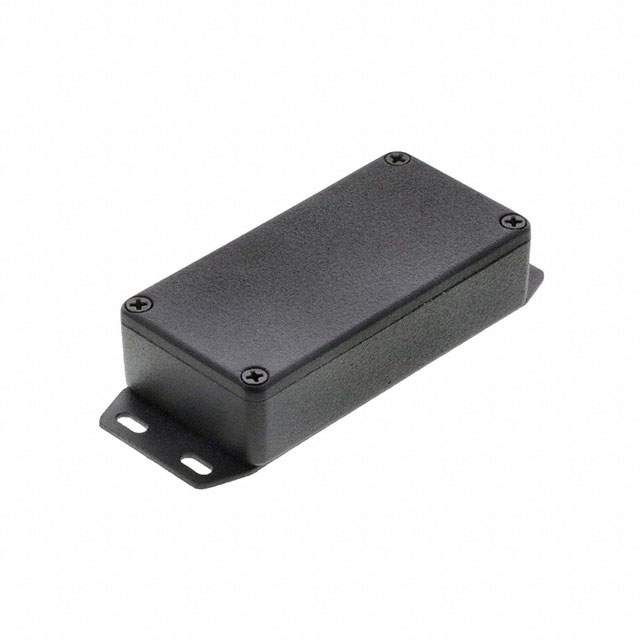

1590GFBK

Active

Hammond Manufacturing

BLACK DIE CAST ALUMINUM FLANGE MOUNT WATERTIGHT ENCLOSURE

Deep-Dive with AI

Search across all available documentation for this part.

1590GFBK

Active

Hammond Manufacturing

BLACK DIE CAST ALUMINUM FLANGE MOUNT WATERTIGHT ENCLOSURE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1590GFBK

Area (L x W)	7.75 in˛
Area (L x W)	50 cm˛
Color	Black
Container Type	Box
Design	Cover Included
Features	EMI Shielded, Mounting Flange
Height [z]	27 mm
Height [z]	1.063 in
Material	Aluminum
Ratings	IP54
Size / Dimension [x]	3.937 in
Size / Dimension [x]	100 mm
Size / Dimension [y]	1.969 in
Size / Dimension [y]	50 mm
Thickness	2.03 mm
Thickness	0.08 "
Weight	0.275 lb
Weight	124.74 g

1590 Series

...

Part	For Use With/Related Products	Accessory Type	Design	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Area (L x W)	Area (L x W)	Features	Thickness	Thickness	Height [z]	Height [z]	Color	Ratings	Material	Container Type	Weight	Weight	Thread Size	Plating	Screw Head Type	Drive Type	Type	Length - Overall	Length - Overall	Length - Overall	Area (L x W) [custom]	Area (L x W) [custom]	Area (L x W)	Height [diameter]	Height [diameter]
Hammond Manufacturing 1590Z119G	1590Z 119 Series	Gasket Seal
Hammond Manufacturing 1590WEEBK			Cover Included	7.882 in	4.732 in	200.2 mm	120.19 mm	37.3 in²	241 cm²	Watertight	0.089 in	2.26 mm	84.51 mm	3.327 in	Black	IP65	Aluminum	Box
Hammond Manufacturing 1590GFL			Cover Included	3.937 in	1.969 in	100 mm	50 mm	7.75 in˛	50 cm˛		0.08 "	2.03 mm	25.5 mm	1.004 in	Unpainted	IP54	Aluminum	Box	116.12 g	0.256 lb
Hammond Manufacturing 1590MS50BK																					#6-32	Black Oxide	Flat Head	Phillips	Machine Screw	0.5 in	0.5 in	12.7 mm
Hammond Manufacturing 1590DFLBK			Cover Included	7.402 "	4.724 in	188.01 mm	119.99 mm				0.08 "	2.03 mm	57.73 mm	2.273 in	Black	IP54	Aluminum	Box											35 in²	226 cm²
Hammond Manufacturing 1590WVFLBK			Cover Included	4.724 "	4.724 in	120 mm	119.99 mm		22.3 in˛	Mounting Flange Watertight	0.08 "	2.03 mm	94.01 mm	3.701 "	Black	IP65	Aluminum	Box	499 g	1.1 lbs											144 cm˛
Hammond Manufacturing 1590CEGASKET		Gasket Seal
Hammond Manufacturing 1590GFBK			Cover Included	3.937 in	1.969 in	100 mm	50 mm	7.75 in˛	50 cm˛	EMI Shielded Mounting Flange	0.08 "	2.03 mm	27 mm	1.063 in	Black	IP54	Aluminum	Box	124.74 g	0.275 lb
Hammond Manufacturing 1590DBK			Cover Included	7.402 "	4.724 in	188.01 mm	119.99 mm			EMI Shielded	0.08 "	2.03 mm	57.73 mm	2.273 in	Black	IP54	Aluminum	Box	499 g	1.1 lbs									35 in²	226 cm²
Hammond Manufacturing 1590ABK			Cover Included	3.642 "	1.516 "	92.51 mm	38.51 mm	5.52 in²	35.6 cm²	EMI Shielded	0.08 "	2.03 mm			Black	IP54	Aluminum	Box	79.38 g	0.175 lb												1.22 in	30.99 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.44
		10	$ 15.39
		100	$ 13.85

Description

General part information

1590 Series

Box Aluminum Black Cover Included 3.937" L x 1.969" W (100.00mm x 50.00mm) X 1.063" (27.00mm)
