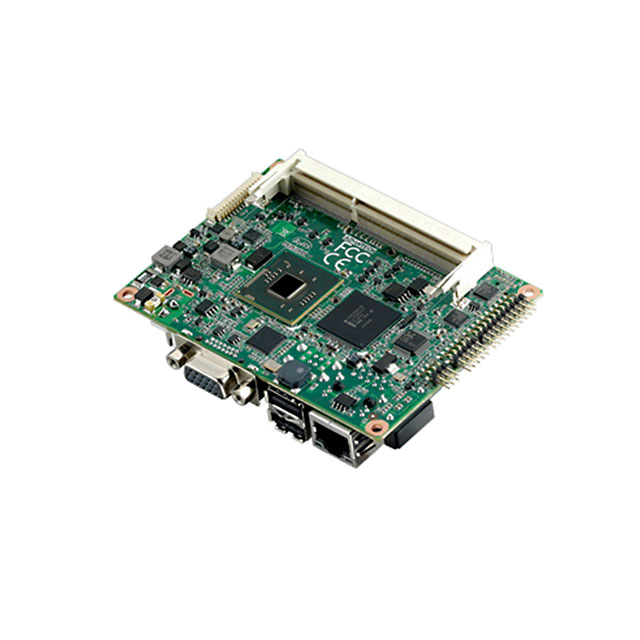

MIO-2261N-S6A1E
ObsoleteAdvantech Corp
SBC 1.6GHZ 2 CORE 4GB/0GB RAM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MIO-2261N-S6A1E |
|---|---|
| Cooling Type | Heat Sink |
| Core Processor | Intel Atom N2600 |
| Digital I/O Lines | 8 |
| Ethernet | 10 Mbps, 1000 Mbps, 100 Mbps |
| Expansion Site/Bus | MIOe, mPCIe |
| Form Factor | MIO-Ultra Pico-ITX |
| Number of Cores | 2 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 4.2 W |
| RAM Capacity/Installed | 4 GB, 0 GB |
| RS-232 (422, 485) | 2 |
| Size / Dimension [x] | 3.9 " |
| Size / Dimension [x] | 99.6 mm |
| Size / Dimension [y] | 71.12 mm |
| Size / Dimension [y] | 2.8 in |
| Speed | 1.6 GHz |
| Storage Interface | mSATA, SATA |
| USB | USB 2.0 (4) |
| Video Outputs | VGA, LVDS |
| Watchdog Timer | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MIO-2261 Series
Single Board Computer 1.6GHz 2 Core 4GB/0GB RAM Intel Atom N2600
