6336.13-25-M5-20-A

Active

J.W. Winco

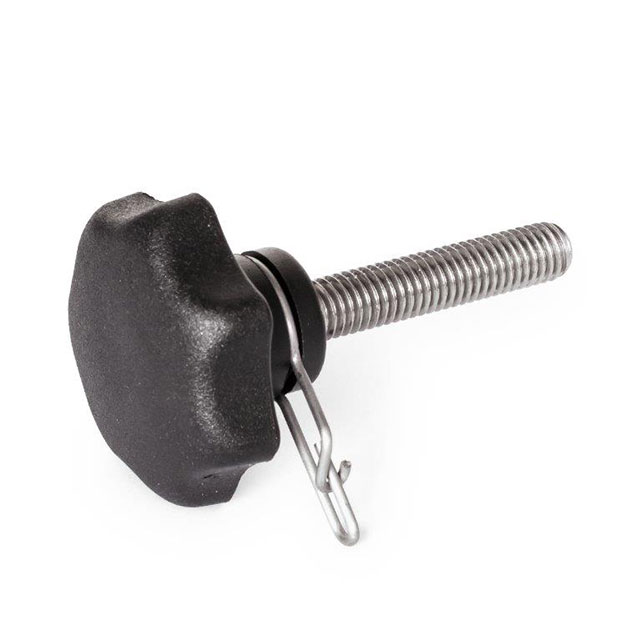

STAR KNOB, LOSS PROTECTION

Search across all available documentation for this part.

Active

J.W. Winco

STAR KNOB, LOSS PROTECTION

Technical Specifications

Parameters and characteristics for this part

Part	Indicator [custom]	Color	Material	Type	Height [z]	Height [z]	Style	Diameter [diameter]	Diameter [diameter]	Shaft Size	Height [diameter]	Height [diameter]
J.W. Winco 6336.13-32-M6-16-H	No Indicator	Black	Plastic	Fluted	20.07 mm	0.79 in	Clamping	32 mm	1.26 in	M6
J.W. Winco 6336.13-50-M10-20-H	No Indicator	Black	Plastic	Fluted			Clamping	50.04 mm	1.97 "	M10	1.26 in	32 mm
J.W. Winco 6336.13-32-M6-H	No Indicator	Black	Plastic	Fluted	20.07 mm	0.79 in	Clamping	32 mm	1.26 in	M6
J.W. Winco 6336.13-40-M8-20-H	No Indicator	Black	Plastic	Fluted	24.89 mm	0.98 in	Clamping	39.88 mm	1.57 in	M8
J.W. Winco 6336.13-32-M6-20-H	No Indicator	Black	Plastic	Fluted	20.07 mm	0.79 in	Clamping	32 mm	1.26 in	M6
J.W. Winco 6336.13-50-M10-30-H	No Indicator	Black	Plastic	Fluted			Clamping	50.04 mm	1.97 "	M10	1.26 in	32 mm
J.W. Winco 6336.13-40-M8-30-H	No Indicator	Black	Plastic	Fluted	24.89 mm	0.98 in	Clamping	39.88 mm	1.57 in	M8
J.W. Winco 6336.13-25-M5-20-A	No Indicator	Black	Plastic	Fluted	16 mm	0.63 in	Clamping	24.89 mm	0.98 in	M5
J.W. Winco 6336.13-40-M8-40-H	No Indicator	Black	Plastic	Fluted	24.89 mm	0.98 in	Clamping	39.88 mm	1.57 in	M8
J.W. Winco 6336.13-25-M5-15-H	No Indicator	Black	Plastic	Fluted	16 mm	0.63 in	Clamping	24.89 mm	0.98 in	M5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 6.00

General part information

Fluted Knob M5 Shaft with No Indicator Plastic Black

Technical documentation and resources
