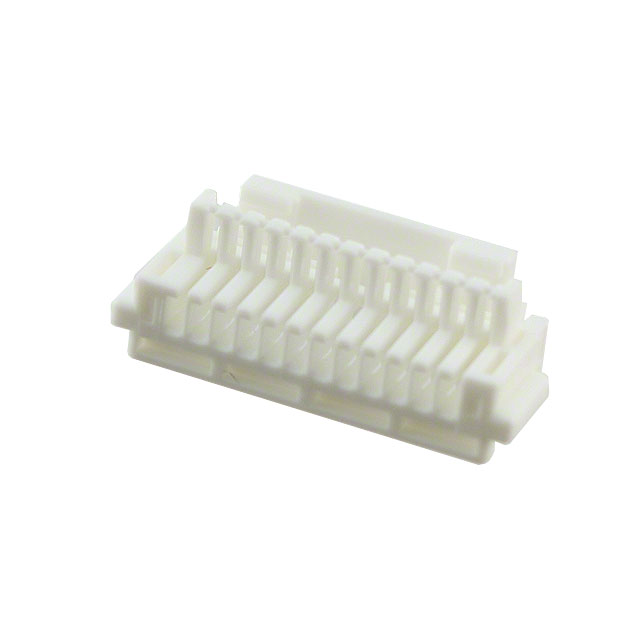

GVHRSF-12V-S

Active

JST Sales America Inc.

CONN RCPT HSG 12POS 1.25MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN RCPT HSG 12POS 1.25MM

Technical Specifications

Parameters and characteristics for this part

Specification	GVHRSF-12V-S

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line), Right Angle
Note	Contacts Not Included
Number of Positions	12
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.049 in
Pitch [x]	1.25 mm

Part	Operating Temperature [Min]	Operating Temperature [Max]	Color	Number of Rows	Connector Type	Number of Positions	Note	Insulation Material	Fastening Type	Pitch [x]	Pitch [x]	Mounting Type	Contact Type	Contact Termination
JST Sales America Inc. GVHRSF-11V-S	-25 °C	85 °C	Natural	1	Receptacle	11	Contacts Not Included	Polybutylene Terephthalate (PBT)	Latch Lock	0.049 in	1.25 mm	Free Hanging (In-Line) Right Angle	Female Socket	Crimp
JST Sales America Inc. GVHRSF-12V-S	-25 °C	85 °C	Natural	1	Receptacle	12	Contacts Not Included	Polybutylene Terephthalate (PBT)	Latch Lock	0.049 in	1.25 mm	Free Hanging (In-Line) Right Angle	Female Socket	Crimp
JST Sales America Inc. GVHRSF-10V-S	-25 °C	85 °C	Natural	1	Receptacle	10	Contacts Not Included	Polybutylene Terephthalate (PBT)	Latch Lock	0.049 in	1.25 mm	Free Hanging (In-Line) Right Angle	Female Socket	Crimp
JST Sales America Inc. GVHRSF-15V-S	-25 °C	85 °C	Natural	1	Receptacle	15	Contacts Not Included	Polybutylene Terephthalate (PBT)	Latch Lock	0.049 in	1.25 mm	Free Hanging (In-Line) Right Angle	Female Socket	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.12

General part information

12 Rectangular Connectors - Housings Receptacle Natural 0.049" (1.25mm)
