BU-3030-A-36-2

Active

Mueller Electric Co

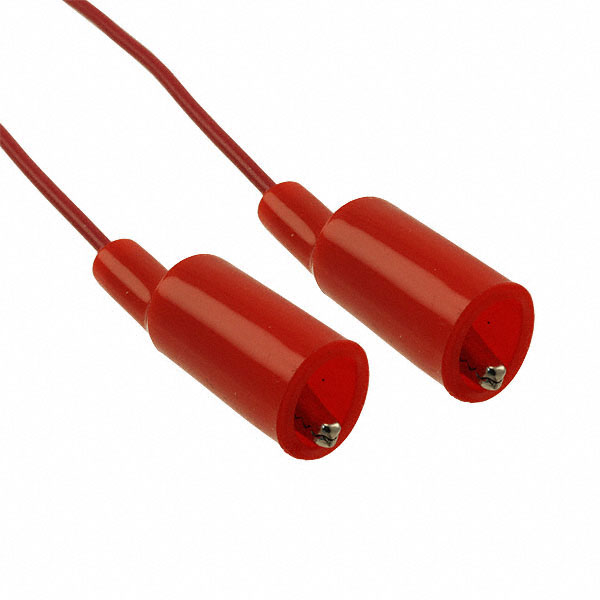

TEST LEAD, ALLIGATOR CLIP TO ALLIGATOR CLIP, RED, 300 V, 10 A, 914.4 MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BU-3030-A-36-2

Active

Mueller Electric Co

TEST LEAD, ALLIGATOR CLIP TO ALLIGATOR CLIP, RED, 300 V, 10 A, 914.4 MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BU-3030-A-36-2

1st Connector	Insulated, Alligator Clip
2nd Connector	Alligator Clip, Insulated
Cable Length	36 in
Cable Length	914.4 mm
Contents	Red
Contents [custom]	1
Current Rating (Amps)	10 A
Material - Insulation	Poly-Vinyl Chloride (PVC)
Temperature Range	105 °C
Temperature Range	221 °F
Voltage - Rated	300 V
Wire Gauge	20 AWG

BU-3030 Series

Part	Voltage - Rated	Cable Length	Cable Length	2nd Connector	Wire Gauge	1st Connector	Contents	Material - Insulation	Current Rating (Amps)	Temperature Range	Temperature Range	Contents [custom]
Mueller Electric Co BU-3030-A-48-0	300 V	48 in	1219.2 mm	Alligator Clip Insulated	20 AWG	Alligator Clip Insulated	1 Lead Black	Poly-Vinyl Chloride (PVC)	10 A	105 °C	221 °F
Mueller Electric Co BU-3030-A-60-0	300 V	5 ft	1524 mm	Alligator Clip Insulated	20 AWG	Alligator Clip Insulated	1 Lead Black	Poly-Vinyl Chloride (PVC)	10 A	105 °C	221 °F
Mueller Electric Co BU-3030-A-24-0	300 V	24 "	609.6 mm	Alligator Clip Insulated	20 AWG	Alligator Clip Insulated	1 Lead Black	Poly-Vinyl Chloride (PVC)	10 A	105 °C	221 °F
Mueller Electric Co BU-3030-A-36-2	300 V	36 in	914.4 mm	Alligator Clip Insulated	20 AWG	Alligator Clip Insulated	Red	Poly-Vinyl Chloride (PVC)	10 A	105 °C	221 °F	1
Mueller Electric Co BU-3030-A-24-2	300 V	24 "	609.6 mm	Alligator Clip Insulated	20 AWG	Alligator Clip Insulated	Red	Poly-Vinyl Chloride (PVC)	10 A	105 °C	221 °F	1
Mueller Electric Co BU-3030-A-60-2	300 V	5 ft	1524 mm	Alligator Clip Insulated	20 AWG	Alligator Clip Insulated	Red	Poly-Vinyl Chloride (PVC)	10 A	105 °C	221 °F	1
Mueller Electric Co BU-3030-A-12-0	300 V	12 in	304.8 mm	Alligator Clip Insulated	20 AWG	Alligator Clip Insulated	1 Lead Black	Poly-Vinyl Chloride (PVC)	10 A	105 °C	221 °F
Mueller Electric Co BU-3030-A-12-2	300 V	12 in	304.8 mm	Alligator Clip Insulated	20 AWG	Alligator Clip Insulated	Red	Poly-Vinyl Chloride (PVC)	10 A	105 °C	221 °F	1
Mueller Electric Co BU-3030-A-48-2	300 V	48 in	1219.2 mm	Alligator Clip Insulated	20 AWG	Alligator Clip Insulated	Red	Poly-Vinyl Chloride (PVC)	10 A	105 °C	221 °F	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.65
		10	$ 7.05
		100	$ 6.72
		500	$ 6.50
		1000	$ 6.39
Newark	Each	100	$ 9.20
		500	$ 8.61
		1000	$ 7.92
		2500	$ 7.22

Description

General part information

BU-3030 Series

36.0" (914.40mm) Alligator Clip, Insulated To Alligator Clip, Insulated Test Lead 300V 1 Lead, Red
