Q-0I0510001024i

Active

Amphenol Custom Cable

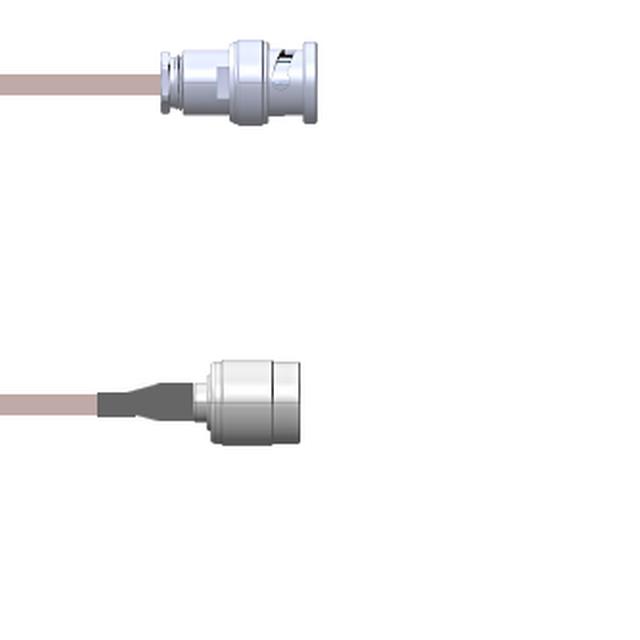

CBL ASSY BNC-TNC PLUG-PLUG 24"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0I0510001024i

Active

Amphenol Custom Cable

CBL ASSY BNC-TNC PLUG-PLUG 24"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0I0510001024i

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	24 "
Length	609.6 mm
Overall Impedance	50 Ohms
Style	BNC to TNC

Q-0I0510 Series

Part	2nd Contact Gender	1st Connector Mounting Type	Style	2nd Connector	Color	Overall Impedance	2nd Connector Mounting Type	Frequency - Max [Max]	1st Connector	1st Contact Gender	Features	Cable Type	Length	Length	Length
Amphenol Custom Cable Q-0I0510001003M	Male	Free Hanging (In-Line)	BNC to TNC	TNC Plug	Copper	50 Ohms	Free Hanging (In-Line)	4 GHz	BNC Plug	Male	Shielded	RG-178	3 m	118.1 in	9.8 '
Amphenol Custom Cable Q-0I0510001060i	Male	Free Hanging (In-Line)	BNC to TNC	TNC Plug	Copper	50 Ohms	Free Hanging (In-Line)	4 GHz	BNC Plug	Male	Shielded	RG-178	1.5 m	5 '	5 ft
Amphenol Custom Cable Q-0I0510001036i	Male	Free Hanging (In-Line)	BNC to TNC	TNC Plug	Copper	50 Ohms	Free Hanging (In-Line)	4 GHz	BNC Plug	Male	Shielded	RG-178	91.44 cm	36 in
Amphenol Custom Cable Q-0I0510001084i	Male	Free Hanging (In-Line)	BNC to TNC	TNC Plug	Copper	50 Ohms	Free Hanging (In-Line)	4 GHz	BNC Plug	Male	Shielded	RG-178	2.1 m	84 in	7 ft
Amphenol Custom Cable Q-0I0510001048i	Male	Free Hanging (In-Line)	BNC to TNC	TNC Plug	Copper	50 Ohms	Free Hanging (In-Line)	4 GHz	BNC Plug	Male	Shielded	RG-178	1200 mm	48 in	4 ft
Amphenol Custom Cable Q-0I0510001006i	Male	Free Hanging (In-Line)	BNC to TNC	TNC Plug	Copper	50 Ohms	Free Hanging (In-Line)	4 GHz	BNC Plug	Male	Shielded	RG-178	152.4 mm	6 in
Amphenol Custom Cable Q-0I0510001002M	Male	Free Hanging (In-Line)	BNC to TNC	TNC Plug	Copper	50 Ohms	Free Hanging (In-Line)	4 GHz	BNC Plug	Male	Shielded	RG-178	2 m	78.7 in	6.6 ft
Amphenol Custom Cable Q-0I0510001024i	Male	Free Hanging (In-Line)	BNC to TNC	TNC Plug	Copper	50 Ohms	Free Hanging (In-Line)	4 GHz	BNC Plug	Male	Shielded	RG-178	609.6 mm	24 "
Amphenol Custom Cable Q-0I0510001108i	Male	Free Hanging (In-Line)	BNC to TNC	TNC Plug	Copper	50 Ohms	Free Hanging (In-Line)	4 GHz	BNC Plug	Male	Shielded	RG-178	2.7 m	108 in	9 ft
Amphenol Custom Cable Q-0I05100012.5M	Male	Free Hanging (In-Line)	BNC to TNC	TNC Plug	Copper	50 Ohms	Free Hanging (In-Line)	4 GHz	BNC Plug	Male	Shielded	RG-178	2.5 m	98.4 in	8.2 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 66.96
		25	$ 65.66
		50	$ 64.36
		100	$ 63.06
		250	$ 61.77

Description

General part information

Q-0I0510 Series

Cable Assembly Coaxial BNC to TNC RG-178 24.00" (609.60mm)

Documents

Technical documentation and resources

No documents available
