Q-1V03C000R006i

Active

Amphenol Custom Cable

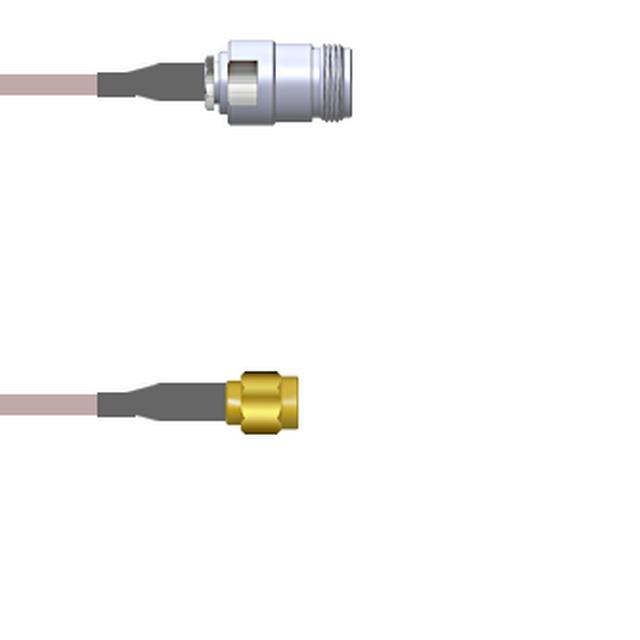

CBL ASSY SMA-NTYPE PLUG-JACK 6"

Deep-Dive with AI

Search across all available documentation for this part.

Q-1V03C000R006i

Active

Amphenol Custom Cable

CBL ASSY SMA-NTYPE PLUG-JACK 6"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1V03C000R006i

1st Connector	SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-316 DB
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	152.4 mm
Length	6 in
Overall Impedance	50 Ohms
Style	SMA to N-Type

Q-1V03C0 Series

Part	Cable Type	1st Connector Mounting Type	Style	Color	2nd Connector Mounting Type	Overall Impedance	Features	2nd Connector	Length	Length	Length	Frequency - Max [Max]	2nd Contact Gender	1st Contact Gender	1st Connector
Amphenol Custom Cable Q-1V03C000R001M	RG-316 DB	Free Hanging (In-Line)	SMA to N-Type	Copper	Free Hanging (In-Line)	50 Ohms	Shielded	N-Type Jack	1 m	3.3 ft	39.4 in	11 GHz	Female	Male	SMA Plug
Amphenol Custom Cable Q-1V03C000R072i	RG-316 DB	Free Hanging (In-Line)	SMA to N-Type	Copper	Free Hanging (In-Line)	50 Ohms	Shielded	N-Type Jack	1.8 m	6 ft	72 in	11 GHz	Female	Male	SMA Plug
Amphenol Custom Cable Q-1V03C000R003i	RG-316 DB	Free Hanging (In-Line)	SMA to N-Type	Copper	Free Hanging (In-Line)	50 Ohms	Shielded	N-Type Jack	76.2 mm		3 in	11 GHz	Female	Male	SMA Plug
Amphenol Custom Cable Q-1V03C000R003M	RG-316 DB	Free Hanging (In-Line)	SMA to N-Type	Copper	Free Hanging (In-Line)	50 Ohms	Shielded	N-Type Jack	3 m	9.8 '	118.1 in	11 GHz	Female	Male	SMA Plug
Amphenol Custom Cable Q-1V03C000R108i	RG-316 DB	Free Hanging (In-Line)	SMA to N-Type	Copper	Free Hanging (In-Line)	50 Ohms	Shielded	N-Type Jack	2.7 m	9 ft	108 in	11 GHz	Female	Male	SMA Plug
Amphenol Custom Cable Q-1V03C000R002M	RG-316 DB	Free Hanging (In-Line)	SMA to N-Type	Copper	Free Hanging (In-Line)	50 Ohms	Shielded	N-Type Jack	2 m	6.6 ft	78.7 in	11 GHz	Female	Male	SMA Plug
Amphenol Custom Cable Q-1V03C000R084i	RG-316 DB	Free Hanging (In-Line)	SMA to N-Type	Copper	Free Hanging (In-Line)	50 Ohms	Shielded	N-Type Jack	2.1 m	7 ft	84 in	11 GHz	Female	Male	SMA Plug
Amphenol Custom Cable Q-1V03C000R006i	RG-316 DB	Free Hanging (In-Line)	SMA to N-Type	Copper	Free Hanging (In-Line)	50 Ohms	Shielded	N-Type Jack	152.4 mm		6 in	11 GHz	Female	Male	SMA Plug
Amphenol Custom Cable Q-1V03C000R012i	RG-316 DB	Free Hanging (In-Line)	SMA to N-Type	Copper	Free Hanging (In-Line)	50 Ohms	Shielded	N-Type Jack	304.8 mm		12 "	11 GHz	Female	Male	SMA Plug
Amphenol Custom Cable Q-1V03C000R2.5M	RG-316 DB	Free Hanging (In-Line)	SMA to N-Type	Copper	Free Hanging (In-Line)	50 Ohms	Shielded	N-Type Jack	2.5 m	8.2 '	98.4 in	11 GHz	Female	Male	SMA Plug

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 150.37
		25	$ 149.32
		50	$ 148.26
		100	$ 147.21
		250	$ 146.16

Description

General part information

Q-1V03C0 Series

Cable Assembly Coaxial SMA to N-Type RG-316 DB 6.000" (152.40mm)

Documents

Technical documentation and resources

No documents available
