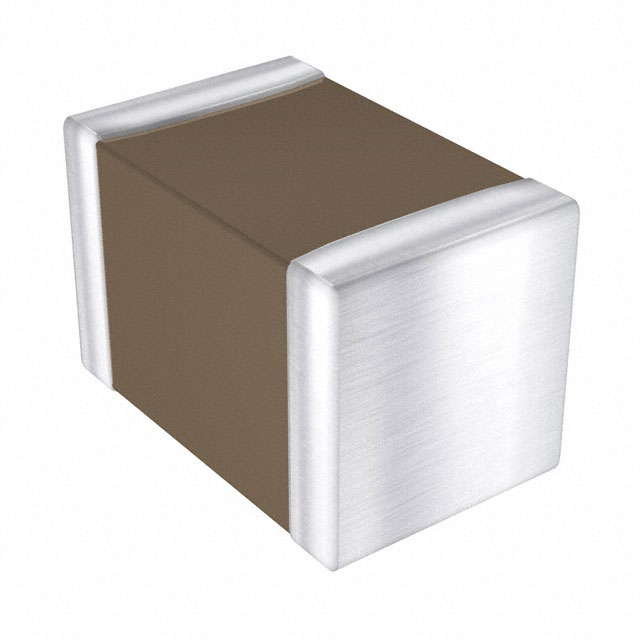

KAS21BR72A222JM

Active

Kyocera AVX

CAP CER 2200PF 100V X7R 0805

Search across all available documentation for this part.

Active

Kyocera AVX

CAP CER 2200PF 100V X7R 0805

Technical Specifications

Parameters and characteristics for this part

Specification	KAS21BR72A222JM

Applications	Boardflex Sensitive, Automotive
Capacitance	2200 pF
Features	Soft Termination
Mounting Type	Surface Mount, MLCC
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	0805
Ratings	AEC-Q200
Size / Dimension	1.25 mm, 2.01 mm
Size / Dimension [x]	0.079 in
Size / Dimension [y]	0.049 in
Temperature Coefficient	X7R
Thickness (Max) [Max] [custom]	0.94 mm
Thickness (Max) [Max] [custom]	0.037 in
Tolerance	5 %
Voltage - Rated	100 V

Part	Tolerance	Applications	Temperature Coefficient	Size / Dimension [y]	Size / Dimension	Size / Dimension [x]	Thickness (Max) [Max] [custom]	Thickness (Max) [Max] [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Voltage - Rated	Mounting Type	Ratings	Features	Capacitance
Kyocera AVX KAS21BR72A103KT	10 %	Automotive Boardflex Sensitive	X7R	0.049 in	1.25 mm 2.01 mm	0.079 in	0.94 mm	0.037 in	-55 °C	125 °C	0805	100 V	MLCC Surface Mount	AEC-Q200	Soft Termination	10000 pF
Kyocera AVX KAS21BR72A222JT	5 %	Automotive Boardflex Sensitive	X7R	0.049 in	1.25 mm 2.01 mm	0.079 in	0.94 mm	0.037 in	-55 °C	125 °C	0805	100 V	MLCC Surface Mount	AEC-Q200	Soft Termination	2200 pF
Kyocera AVX KAS21BR72A222JM	5 %	Automotive Boardflex Sensitive	X7R	0.049 in	1.25 mm 2.01 mm	0.079 in	0.94 mm	0.037 in	-55 °C	125 °C	0805	100 V	MLCC Surface Mount	AEC-Q200	Soft Termination	2200 pF
Kyocera AVX KAS21KR72A104KL	10 %	Automotive Boardflex Sensitive	X7R	0.049 in	1.25 mm 2.01 mm	0.079 in	0.94 mm	0.037 in	-55 °C	125 °C	0805	100 V	MLCC Surface Mount	AEC-Q200	Soft Termination	100000 pF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2200 pF ±5% 100V Ceramic Capacitor X7R 0805 (2012 Metric)
