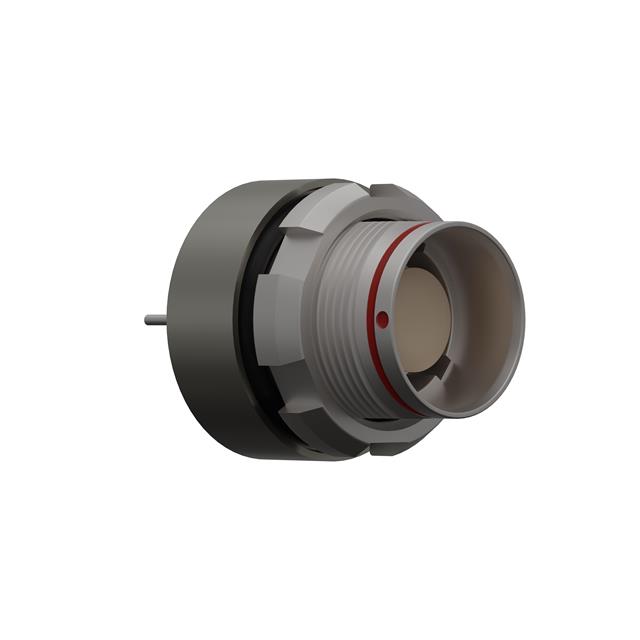

GKCWBC-P04LBC0-000L

Active

ODU

CONN RCPT FMALE 4POS SOLDER CUP

Search across all available documentation for this part.

Active

ODU

CONN RCPT FMALE 4POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	GKCWBC-P04LBC0-000L

Applications	Medical, Industrial, Military
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Fastening Type	Detent Lock, Push-Pull
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-51 °C
Orientation	B
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	00
Shielding	Shielded
Voltage Rating	300 VDC

Part	Color	Shell Finish	Shell Material	Contact Finish - Mating	Fastening Type	Primary Material	Ingress Protection	Orientation	Number of Positions	Applications	Shell Size - Insert	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Voltage Rating	Mounting Feature	Mounting Type	Termination
ODU GKCWBC-P04LBC0-000L	Silver	Chrome	Brass	Gold	Detent Lock Push-Pull	Metal	IP68 - Dust Tight Waterproof	B	4	Industrial Medical Military	00	Receptacle Female Sockets	-51 °C	125 °C	Shielded	300 VDC	Bulkhead - Front Side Nut
ODU GKCWBC-P04QB00-000L	Silver	Chrome	Brass	Gold	Detent Lock Push-Pull	Metal	IP68 - Dust Tight Waterproof	B	4	Industrial Medical Military	00	Receptacle Female Sockets	-51 °C	125 °C	Shielded	300 VDC	Bulkhead - Front Side Nut	Panel Mount Through Hole	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Female Sockets Solder Cup
