Q-1Z04500012.5M

Active

Amphenol Custom Cable

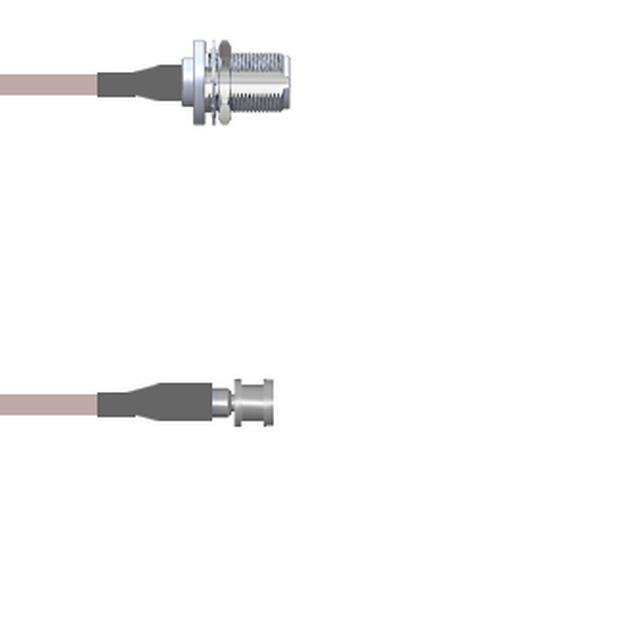

CBL ASSY SMPM-NTYPE JCK-JCK 8.2'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

CBL ASSY SMPM-NTYPE JCK-JCK 8.2'

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1Z04500012.5M

1st Connector	SMPM Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	8.2 '
Length	98.4 in
Length	2.5 m
Overall Impedance	50 Ohms
Style	SMPM to N-Type

Part	2nd Connector Mounting Type	Color	1st Contact Gender	2nd Connector	Overall Impedance	Cable Type	Length	Length	Length	Features	1st Connector Mounting Type	Frequency - Max [Max]	2nd Connector Mounting Feature	2nd Contact Gender	Style	1st Connector
Amphenol Custom Cable Q-1Z04500012.5M	Panel Mount	Copper	Female	N-Type Jack	50 Ohms	RG-178	8.2 '	98.4 in	2.5 m	Shielded	Free Hanging (In-Line)	6000 MHz	Bulkhead - Front Side Nut	Female	SMPM to N-Type	SMPM Jack
Amphenol Custom Cable Q-1Z0450001003M	Panel Mount	Copper	Female	N-Type Jack	50 Ohms	RG-178	9.8 '	118.1 in	3 m	Shielded	Free Hanging (In-Line)	6000 MHz	Bulkhead - Front Side Nut	Female	SMPM to N-Type	SMPM Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMPM to N-Type RG-178 98.4" (2.5m) 8.2'
