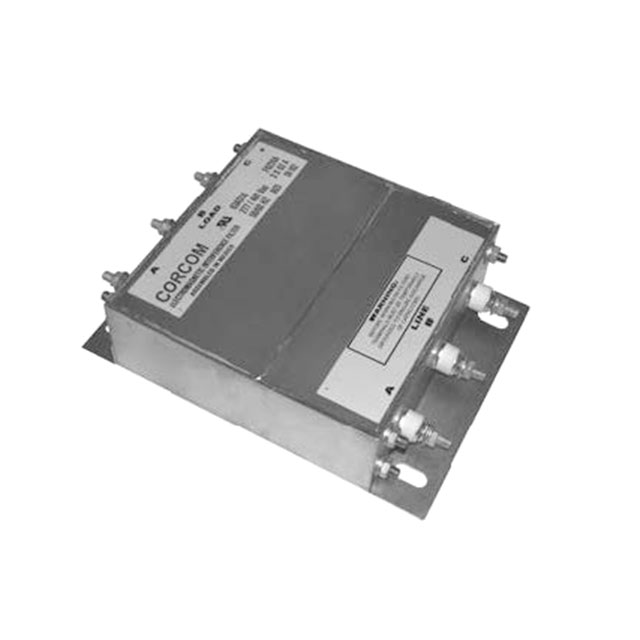

1609071-3

Obsolete

TE Connectivity Corcom Filters

LINE FILTER 100A CHASSIS MOUNT

Search across all available documentation for this part.

Obsolete

TE Connectivity Corcom Filters

LINE FILTER 100A CHASSIS MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	1609071-3

Applications	General Purpose
Configuration	Single Stage
Current	100 A
Filter Type	Three Phase (Delta)
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	50 Hz
Mounting Type	Chassis Mount
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-10 °C
Termination Style	Threaded Post (3/8-16)
Voltage - Rated AC (Phase to Phase)	480 V

LINE FILTER 100A CHASSIS MOUNT

Part	Applications	Frequency - Operating [Max]	Frequency - Operating [Min]	Voltage - Rated AC (Phase to Phase)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Filter Type	Configuration	Current	Termination Style
TE Connectivity Corcom Filters 1609071-3	General Purpose	60 Hz	50 Hz	480 V	Chassis Mount	-10 °C	40 °C	Three Phase (Delta)	Single Stage	100 A	Threaded Post (3/8-16)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Three Phase (Delta) EMC/EMI Line Filter 100 A 50/60Hz Single Stage Threaded Post (3/8-16)
