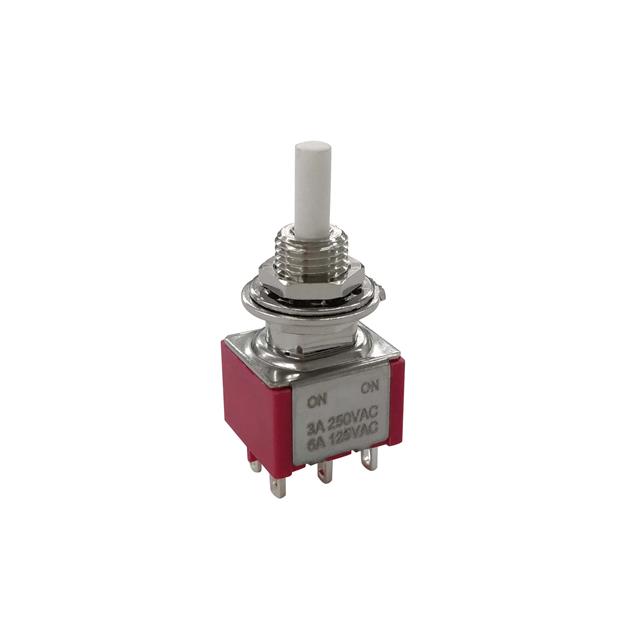

SW-PB8-BA00A1QE-3
ActiveAdam Tech
ALTERNATE ACTING PUSHBUTTON SWIT
Deep-Dive with AI
Search across all available documentation for this part.
SW-PB8-BA00A1QE-3
ActiveAdam Tech
ALTERNATE ACTING PUSHBUTTON SWIT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SW-PB8-BA00A1QE-3 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Plunger |
| Circuit | DPDT |
| Current Rating (Amps) | 6 A |
| Mounting Type | Panel Mount, Rear |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Switch Function | On-On |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 5.99 | |
| 10 | $ 5.17 | |||
| 25 | $ 4.88 | |||
| 50 | $ 4.67 | |||
| 100 | $ 4.46 | |||
| 250 | $ 4.21 | |||
| 500 | $ 4.02 | |||
| 1000 | $ 3.85 | |||
Description
General part information
SW-PB8 Series
Pushbutton Switch DPDT Standard Panel Mount, Rear
