QRF8-078-05.0-L-D-A

Active

Samtec Inc.

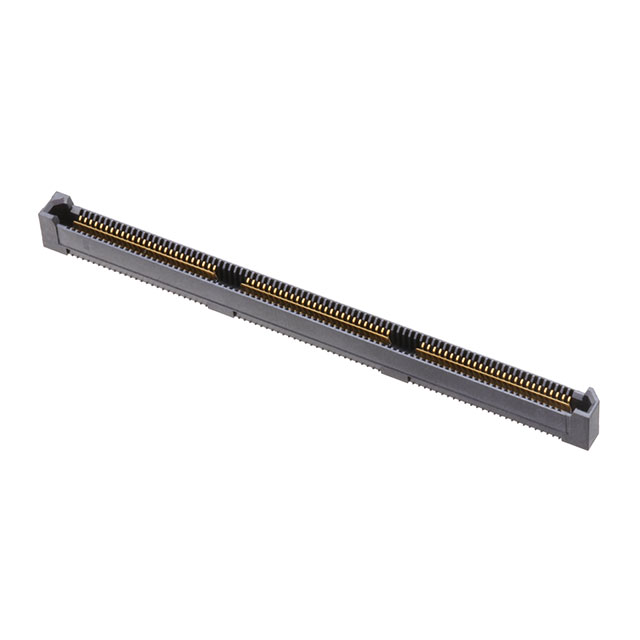

CONN ARRAY RCPT 156POS SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN ARRAY RCPT 156POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Height Above Board [z]	Height Above Board [z]	Pitch [x]	Pitch [x]	Contact Finish	Number of Rows	Mated Stacking Heights	Connector Type	Height Above Board	Height Above Board	Features	Contact Finish Thickness	Contact Finish Thickness
Samtec Inc. QRF8-078-05.0-S-D-A	Surface Mount	5 mm	0.197 in	0.8 mm	0.031 in	Gold	2	7 mm 10 mm 12 mm	Array Female Sockets
Samtec Inc. QRF8-078-07.0-L-D-A-K	Surface Mount			0.8 mm	0.031 in	Gold	2	7 mm 10 mm 12 mm	Array Female Sockets	0.276 in	7.01 mm	Board Guide Ground Bus (Plane) Pick and Place	10 Áin	0.25 Ám
Samtec Inc. QRF8-078-05.0-L-D-A	Surface Mount	5 mm	0.197 in	0.8 mm	0.031 in	Gold	2	7 mm 10 mm 12 mm	Array Female Sockets				10 Áin	0.25 Ám
Samtec Inc. QRF8-078-05.0-S-D-A-GP	Surface Mount	5 mm	0.197 in	0.8 mm	0.031 in	Gold	2	7 mm 10 mm 12 mm	Array Female Sockets
Samtec Inc. QRF8-078-05.0-L-D-A-K	Surface Mount	5 mm	0.197 in	0.8 mm	0.031 in	Gold	2	7 mm 10 mm 12 mm	Array Female Sockets			Board Guide Ground Bus (Plane) Pick and Place	10 Áin	0.25 Ám

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

156 Position Connector Array, Female Sockets Surface Mount Gold
