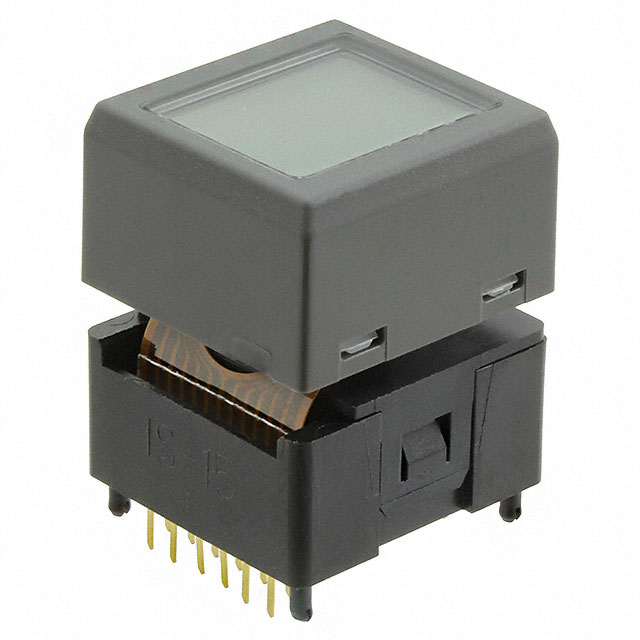

Specification	IS15BSBFP4RGB

Circuit	SPST-NO
Contact Rating (Current)	0.1 A
Display Mode	FSTN Positive, Black and White
Face Size Length	19 mm
Face Size Width	18 mm
LED Color	Red - Green - Blue
LED Forward Current (1)	10 mA
LED Forward Current (2)	8.5 mA
LED Forward Current (3)	8 mA
LED Forward Voltage (Max)	2.8 VDC
LED Forward Voltage (Min)	2 VDC
LED Forward Voltage (Typical)	2.8 VDC
Mounting Type	Through Hole
Operating Force	173 gf
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	-15 °C
Pixel Height	24 pixel
Pixel Width	36 pixel
Style	Compact
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	3 V
Switch Function	Off-Mom
Termination Style	PC Pin
Travel Range	1.8 mm
Type	LCD, Pushbutton
Viewing Area Length	14.5 mm
Viewing Area Width	11.8 mm

IS15BSB Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Contact Rating (Current)	Pixel Height	Pixel Width	Switch Function	Termination Style	Circuit	Type	Display Mode	Supply Voltage (Min)	Supply Voltage (Max)	Viewing Area Width	Viewing Area Length	Mounting Type	Face Size Width	Face Size Length	LED Color	LED Forward Current (2)	LED Forward Current (3)	LED Forward Current (1)	Travel Range	Operating Force	Style	LED Forward Voltage (Min)	LED Forward Voltage (Typical)	LED Forward Voltage (Max)
NKK Switches IS15BSBFP4RGB-BLK	50 °C	-15 °C	0.1 A	24 pixel	36 pixel	Off-Mom	PC Pin	SPST-NO	LCD Pushbutton	Black and White FSTN Positive	3 V	5.5 V	11.8 mm	14.5 mm	Through Hole	18 mm	19 mm	Red - Green - Blue	8.5 mA	8 mA	10 mA	1.8 mm	173 gf	Compact	2 VDC	2.8 VDC	2.8 VDC
NKK Switches IS15BSBFP4RGB	50 °C	-15 °C	0.1 A	24 pixel	36 pixel	Off-Mom	PC Pin	SPST-NO	LCD Pushbutton	Black and White FSTN Positive	3 V	5.5 V	11.8 mm	14.5 mm	Through Hole	18 mm	19 mm	Red - Green - Blue	8.5 mA	8 mA	10 mA	1.8 mm	173 gf	Compact	2 VDC	2.8 VDC	2.8 VDC
NKK Switches IS15BSBFP4EF	50 °C	-15 °C	0.1 A	24 pixel	36 pixel	Off-Mom	PC Pin	SPST-NO	LCD Pushbutton	Black and White FSTN Positive	3 V	5.5 V	11.8 mm	14.5 mm	Through Hole	18 mm	19 mm	Yellow - Green	15 mA		15 mA	1.8 mm	173 gf	Compact	1.9 VDC		3.2 VDC
