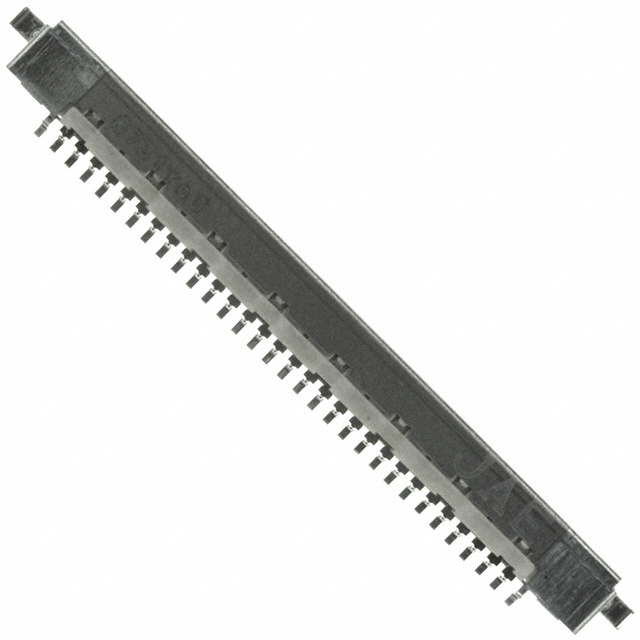

Specification	FI-X30SSL-HF-R2500

Applications	General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3.9 µin
Contact Material	Copper Alloy
Contact Type	Non-Gendered
Current Rating (Per Contact)	1 A
Fastening Type	Friction Lock
Features	Grounding Pins, Shielded, Solder Retention
Insulation Color	Beige
Insulation Height	0.091 in
Insulation Material	Plastic
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Surface Mount
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.039 in
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	200 VDC

FI-X30 Series

Part	Wire Type	Mounting Type	Contact Type	Number of Rows	Connector Type	Color	Fastening Type	Number of Positions	Pitch	Accessory Type	For Use With/Related Products	Contact Finish	Usage	Features	Cable Termination	Pitch - Connector	Length	Note	Insulation Material	Operating Temperature (Max)	Operating Temperature (Min)	Contact Termination	Contact Finish Thickness	Insulation Color	Number of Positions Loaded	Voltage Rating	Contact Finish Thickness - Mating	Termination	Pitch - Mating	Material Flammability Rating	Contact Finish - Mating	Current Rating (Per Contact)	Style	Contact Finish - Post	Insulation Height	Contact Material	Applications
JAE Electronics FI-X30C2-NPB	Discrete	Free Hanging (In-Line)	Coaxial Male Pin	1	Plug	Black	Latch Lock	30	0.039 in
JAE Electronics FI-X30CLH-NPB-C100								30		Shell	FI-X Series
JAE Electronics FI-X30HL-KITASSY-300M				2	Plug to Plug	Gray Individual		30				Tin	Display Cable	Assembly Kit	Crimp	0.039 in	0.984 ft
JAE Electronics FI-X30H		Free Hanging (In-Line)	Male Pin	1	Plug			30	0.039 in									Contacts Not Included	Glass Filled Nylon 4/6 Polyamide (PA46)	80 °C	-40 °C	Crimp
JAE Electronics FI-X30C2L-T-NPB	Discrete	Free Hanging (In-Line)	Coaxial Male Pin	1	Plug	Black	Latch Lock	30	0.039 in
JAE Electronics FI-X30FR	Flat Flexible Cable	Free Hanging (In-Line)		1	Plug	Black	Friction Lock	30	0.039 in			Gold
JAE Electronics FI-X30C2EL	Discrete	Free Hanging (In-Line)	Coaxial Male Pin	1	Plug	Black	Latch Lock	30	0.039 in			Gold											27.6 µin
JAE Electronics FI-X30SSL-HF		Right Angle Surface Mount	Non-Gendered	1	Receptacle		Friction Lock	30						Grounding Pins Shielded Solder Retention					Plastic	80 °C	-40 °C			Beige	All	200 VDC	3.9 µin	Solder	0.039 in	UL94 V-0	Gold	1 A	Board Cable/Wire	Tin	0.091 in	Copper Alloy	General Purpose
JAE Electronics FI-X30C-NPB	Discrete	Free Hanging (In-Line)	Coaxial Male Pin	1	Plug	Black	Latch Lock	30	0.039 in			Gold											3.94 µin
JAE Electronics FI-X30SSLA-HF		Right Angle Surface Mount	Non-Gendered	1	Receptacle		Friction Lock	30						Grounding Pins Shielded Solder Retention					Plastic	80 °C	-40 °C			Beige	All	200 VDC		Solder	0.039 in	UL94 V-0	Gold	1 A	Board Cable/Wire	Tin	0.091 in	Copper Alloy	General Purpose
