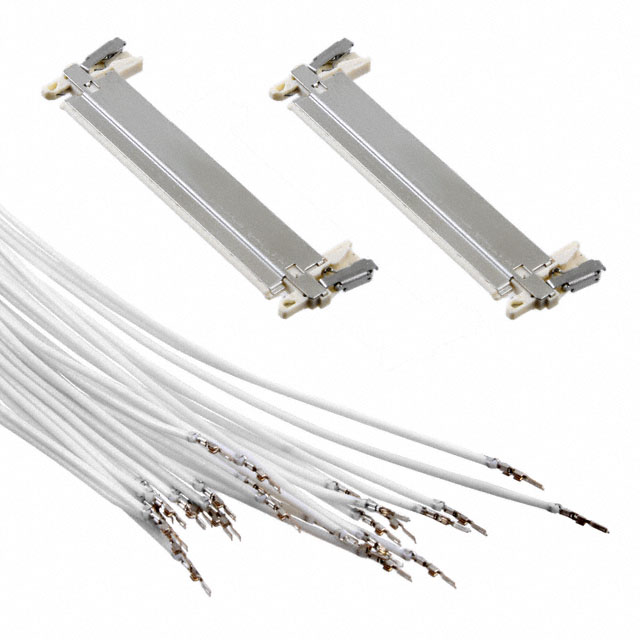

FI-X30HL-KITASSY-300M

Obsolete

JAE Electronics

CABLE ASSY FI-X 30POS 300MM

Deep-Dive with AI

Search across all available documentation for this part.

FI-X30HL-KITASSY-300M

Obsolete

JAE Electronics

CABLE ASSY FI-X 30POS 300MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FI-X30HL-KITASSY-300M

Cable Termination	Crimp
Color	Gray, Individual
Connector Type	Plug to Plug
Contact Finish	Tin
Features	Assembly Kit
Length [x]	0.984 '
Length [x]	11.81 "
Length [x]	300 mm
Number of Positions	30
Number of Rows	2
Pitch - Connector	0.039 "
Pitch - Connector	1 mm
Usage	Display Cable

FI-X30 Series

Part	Number of Rows	Pitch [x]	Pitch [x]	Connector Type	Fastening Type	Contact Type	Color	Number of Positions	Wire Type	Mounting Type	For Use With/Related Products	Accessory Type	Contact Finish	Features	Pitch - Connector	Pitch - Connector	Usage	Cable Termination	Length [x]	Length [x]	Length [x]	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Note	Insulation Material	Contact Finish Thickness	Contact Finish Thickness	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Insulation Height	Insulation Height	Contact Finish - Mating	Material Flammability Rating	Termination	Voltage Rating	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Number of Positions Loaded	Style	Contact Material	Insulation Color	Applications
JAE Electronics FI-X30C2-NPB	1	0.039 in	1 mm	Plug	Latch Lock	Coaxial Male Pin	Black	30	Discrete	Free Hanging (In-Line)
JAE Electronics FI-X30CLH-NPB-C100								30			FI-X Series	Shell
JAE Electronics FI-X30HL-KITASSY-300M	2			Plug to Plug			Gray Individual	30					Tin	Assembly Kit	0.039 "	1 mm	Display Cable	Crimp	0.984 '	11.81 "	300 mm
JAE Electronics FI-X30H	1	0.039 in	1 mm	Plug		Male Pin		30		Free Hanging (In-Line)												Crimp	-40 °C	80 C	Contacts Not Included	Glass Filled Nylon 4/6 Polyamide (PA46)
JAE Electronics FI-X30C2L-T-NPB	1	0.039 in	1 mm	Plug	Latch Lock	Coaxial Male Pin	Black	30	Discrete	Free Hanging (In-Line)
JAE Electronics FI-X30FR	1	0.039 in	1 mm	Plug	Friction Lock		Black	30	Flat Flexible Cable	Free Hanging (In-Line)			Gold
JAE Electronics FI-X30C2EL	1	0.039 in	1 mm	Plug	Latch Lock	Coaxial Male Pin	Black	30	Discrete	Free Hanging (In-Line)			Gold														27.6 µin	0.7 µm
JAE Electronics FI-X30SSL-HF	1			Receptacle	Friction Lock	Non-Gendered		30		Surface Mount Right Angle				Grounding Pins Shielded Solder Retention									-40 °C	80 C		Plastic			0.099 µm	3.9 µin	1 A	2.3 mm	0.091 in	Gold	UL94 V-0	Solder	200 V	0.039 in	1 mm	Tin	All	Board to Cable/Wire	Copper Alloy	Beige	General Purpose
JAE Electronics FI-X30C-NPB	1	0.039 in	1 mm	Plug	Latch Lock	Coaxial Male Pin	Black	30	Discrete	Free Hanging (In-Line)			Gold
JAE Electronics FI-X30SSLA-HF	1			Receptacle	Friction Lock	Non-Gendered		30		Surface Mount Right Angle				Grounding Pins Shielded Solder Retention									-40 °C	80 C		Plastic					1 A	2.3 mm	0.091 in	Gold	UL94 V-0	Solder	200 V	0.039 in	1 mm	Tin	All	Board to Cable/Wire	Copper Alloy	Beige	General Purpose

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

FI-X30 Series

30 Position Cable Assembly Rectangular Plug to Plug 0.984' (300.00mm, 11.81")
