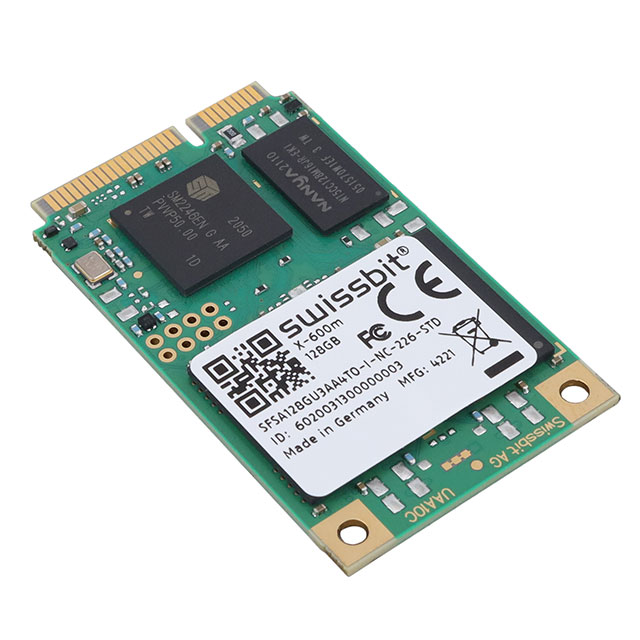

SFSA128GU3AA4TO-I-NC-226-STD

Active

SWISSBIT

SSD, INTERNAL, MSATA, SATA 6 GB/S (SATA III), 128 GB, SLC NAND, NON-ENCRYPTED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

SFSA128GU3AA4TO-I-NC-226-STD

Active

SWISSBIT

SSD, INTERNAL, MSATA, SATA 6 GB/S (SATA III), 128 GB, SLC NAND, NON-ENCRYPTED

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFSA128GU3AA4TO-I-NC-226-STD

Form Factor	mSATA
Memory Size	128 GB
Memory Type	Solid State Drive (SSD) FLASH - NAND (SLC)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	2 in
Size / Dimension [y]	29.85 mm
Size / Dimension [z]	3.5 mm
Speed - Read	520 MB/s
Type	SATA III
Voltage - Supply	3.3 V

SFSA128 Series

Part	Speed - Read	Current - Max [Max]	Memory Size	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Memory Type	Voltage - Supply	Form Factor	Type	Form Factor	Speed - Write	Weight	Weight	Weight
SWISSBIT SFSA128GM1AA4TO-C-NC-416-STD	520 MB/s	750 mA	128 GB	60 mm	3.3 mm	22 mm	70 °C	0 °C	Solid State Drive (SSD) FLASH - NAND (SLC)	3.3 V	M.2 Module	SATA III
SWISSBIT SFSA128GM3AA4TO-I-NC-426-STD	520 MB/s		128 GB	60 mm	3.58 mm	22 mm	85 °C	-40 °C	Solid State Drive (SSD) FLASH - NAND (SLC)	3.3 V	M.2 Module	SATA III
SWISSBIT SFSA128GQ1BJ8TO-I-NU-236-STD	247 MB/s	480 mA	128 GB	100.2 mm	9.3 mm	69.85 mm	85 °C	-40 °C	Solid State Drive (SSD) FLASH - NAND (SLC)				2.5 in	189 MB/s	80.36 g	2.82 oz
SWISSBIT SFSA128GU1AA4TO-I-NC-216-STD	520 MB/s	730 mA	128 GB	2 in	3.5 mm	29.85 mm	85 °C	-40 °C	Solid State Drive (SSD) FLASH - NAND (SLC)	3.3 V	mSATA	SATA III
SWISSBIT SFSA128GU3AA4TO-I-NC-226-STD	520 MB/s		128 GB	2 in	3.5 mm	29.85 mm	85 °C	-40 °C	Solid State Drive (SSD) FLASH - NAND (SLC)	3.3 V	mSATA	SATA III
SWISSBIT SFSA128GQ1AA4TO-C-NC-226-STD	520 MB/s		128 GB	100.1 mm	7 mm	69.85 mm	70 °C	0 °C	Solid State Drive (SSD) FLASH - NAND (SLC)			SATA III	2.5 in		2.47 oz		70.38 g
SWISSBIT SFSA128GQ1BJ8TO-C-NU-236-STD	247 MB/s	480 mA	128 GB	100.2 mm	9.3 mm	69.85 mm	70 °C	0 °C	Solid State Drive (SSD) FLASH - NAND (SLC)				2.5 in	189 MB/s	80.36 g	2.82 oz
SWISSBIT SFSA128GM3AA4TO-I-NC-626-STD	520 MB/s		128 GB	80 mm	3.58 mm	22 mm	85 °C	-40 °C	Solid State Drive (SSD) FLASH - NAND (SLC)	3.3 V	M.2 Module	SATA III
SWISSBIT SFSA128GU1AA4TO-C-NC-216-STD	520 MB/s	750 mA	128 GB	2 in	3.5 mm	29.85 mm	70 °C	0 °C	Solid State Drive (SSD) FLASH - NAND (SLC)	3.3 V	mSATA	SATA III
SWISSBIT SFSA128GM1AA4TO-C-NC-616-STD	520 MB/s	750 mA	128 GB	80 mm	3.3 mm	22 mm	70 °C	0 °C	Solid State Drive (SSD) FLASH - NAND (SLC)	3.3 V	M.2 Module	SATA III

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1256.75
Newark	Each	1	$ 1461.39
		5	$ 1440.95
		10	$ 1420.51
		25	$ 1338.76

Description

General part information

SFSA128 Series

Solid State Drive (SSD) FLASH - NAND (SLC) 128GB SATA III mSATA 3.3V

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet

Product Change Notice EN

Datasheet
