IS25SMT&R

Active

Isocom Components 2004 LTD

OPTOCOUPLER, 1 CH, 5KV, SMDIP-6 ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Isocom Components 2004 LTD

OPTOCOUPLER, 1 CH, 5KV, SMDIP-6 ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

OPTOCOUPLER, 1 CH, 5KV, SMDIP-6 ROHS COMPLIANT: YES

Part	Mounting Type	Output Type	Termination Style	Voltage - Load [Min]	Voltage - Load [Max]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	On-State Resistance (Max) [Max]	Package / Case	Package / Case	Package / Case	Voltage - Input	Load Current
Isocom Components 2004 LTD IS25SMT&R	Surface Mount	AC, DC	Gull Wing	0 V	250 V	6-SMD	85 °C	-40 °C	15 Ohm	7.62 mm	0.3 in	6-SMD	1.18 VDC	180 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

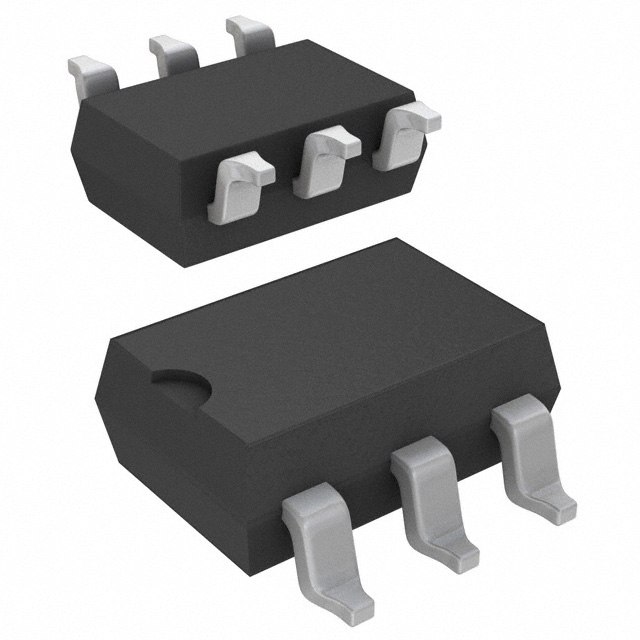

Solid State SPST-NO (1 Form A) 6-SMD (0.300", 7.62mm)
