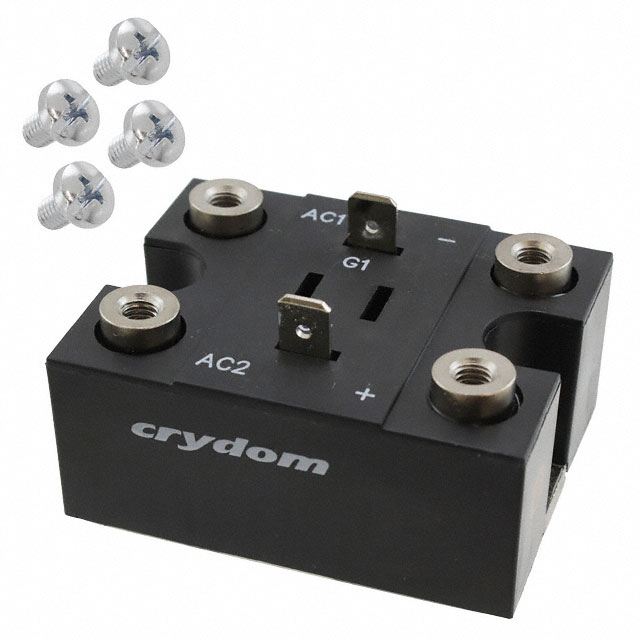

Specification	M505015F

Current - Gate Trigger (Igt) (Max)	150 mA
Current - Non Rep. Surge (Itsm)	600 A
Current - Non Rep. Surge Frequencies	60Hz, 50Hz
Current - Non Rep. Surge Type	Itsm
Mounting Type	Chassis Mount
Number of Diodes	2 count
Number of SCRs	2 count
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Package / Case	Module
Structure	Single Phase - SCRs/Diodes (Layout 1), Diodes (Layout 1), Single Phase - SCRs, Bridge
Voltage - Gate Trigger (Vgt) (Max)	3 V
Voltage - Off State	1200 kV

M505015 Series

Part	Current - Gate Trigger (Igt) (Max)	Voltage - Off State	Number of Diodes	Number of SCRs	Current - Non Rep. Surge Frequencies	Current - Non Rep. Surge (Itsm)	Current - Non Rep. Surge Type	Operating Temperature (Max)	Operating Temperature (Min)	Package / Case	Structure	Mounting Type	Voltage - Gate Trigger (Vgt) (Max)
Sensata-Crydom M505015F	150 mA	1200 kV	2 count	2 count	50Hz 60Hz	600 A	Itsm	125 °C	-40 °C	Module	Bridge Diodes (Layout 1) Single Phase - SCRs Single Phase - SCRs/Diodes (Layout 1)	Chassis Mount	3 V
Sensata-Crydom M505015FV	150 mA	1200 kV	2 count	2 count	50Hz 60Hz	600 A	Itsm	125 °C	-40 °C	Module	Bridge Diodes (Layout 1) Single Phase - SCRs Single Phase - SCRs/Diodes (Layout 1)	Chassis Mount	3 V
