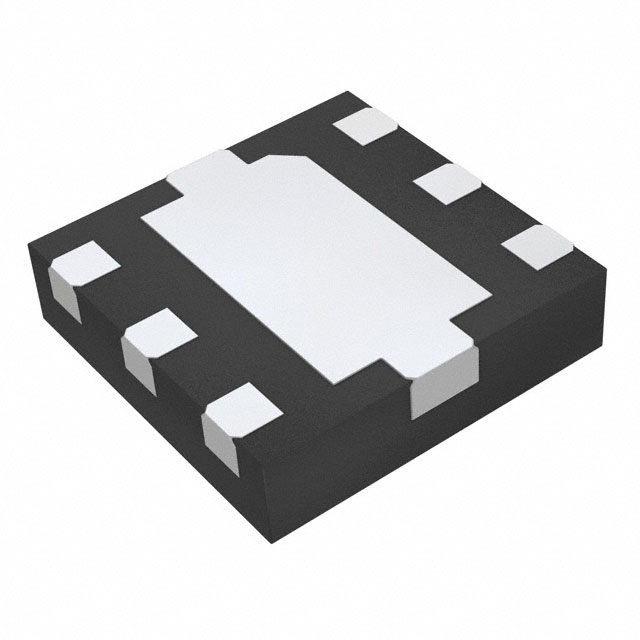

CG2164X3-C2

Active

CEL

IC RF SWITCH DPDT 6GHZ 6TSON

Search across all available documentation for this part.

Active

CEL

IC RF SWITCH DPDT 6GHZ 6TSON

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CG2164X3-C2	CG2164 Series

Circuit	DPDT	DPDT
For Use With/Related Products	-	CG2164X3
Frequency	-	6 GHz
Frequency	-	2.5 GHz
Frequency Range [Max]	6 GHz	6 GHz
Frequency Range [Min]	2.4 GHz	2.4 GHz
IIP3	55 dBm	55 dBm
Impedance	50 Ohms	50 Ohms
Insertion Loss	0.5 dB	0.5 dB
Isolation	23 dB	23 dB
Mounting Type	-	Surface Mount
Package / Case	6-XFDFN Exposed Pad	6-XFDFN Exposed Pad
RF Type	802.11a/b/g/n/ac	802.11a/b/g/n/ac
Supplied Contents	-	Board(s)
Supplier Device Package	6-TSON	6-TSON, 6-TSON (1.5x1.5)
Test Frequency	2.5 GHz	2.5 GHz
Voltage - Supply [Max]	5 V	5 V
Voltage - Supply [Min]	1.8 V	1.8 V

IC RF SWITCH DPDT 6GHZ 6TSON

Part	Circuit	Package / Case	Frequency Range [Max]	Frequency Range [Min]	Insertion Loss	Impedance	RF Type	Test Frequency	Voltage - Supply [Min]	Voltage - Supply [Max]	Isolation	Supplier Device Package	IIP3	Mounting Type	Supplied Contents	For Use With/Related Products	Frequency [Max]	Frequency [Min]
CEL CG2164X3-C2	DPDT	6-XFDFN Exposed Pad	6 GHz	2.4 GHz	0.5 dB	50 Ohms	802.11a/b/g/n/ac	2.5 GHz	1.8 V	5 V	23 dB	6-TSON	55 dBm
CEL CG2164X3	DPDT	6-XFDFN Exposed Pad	6 GHz	2.4 GHz	0.5 dB	50 Ohms	802.11a/b/g/n/ac	2.5 GHz	1.8 V	5 V	23 dB	6-TSON (1.5x1.5)	55 dBm	Surface Mount
CEL CG2164X3-EVAL															Board(s)	CG2164X3	6 GHz	2.5 GHz
