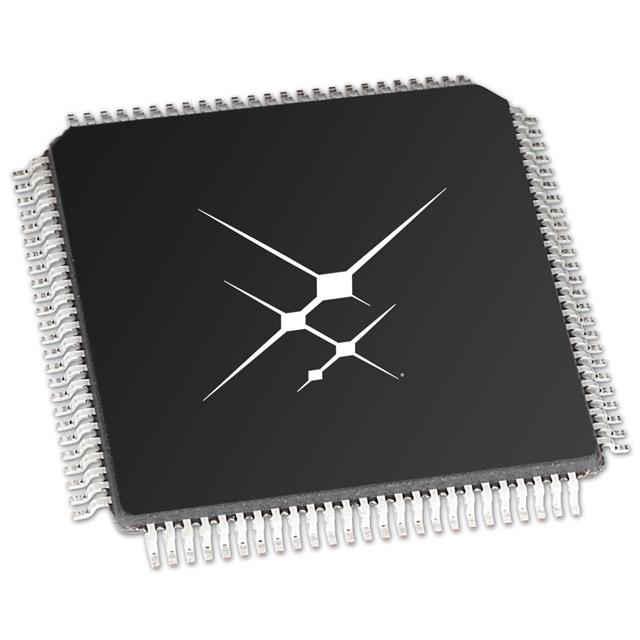

SI5366-C-GQ

Active

Skyworks Solutions Inc.

CLOCK GENERATOR 0.008MHZ TO 707.35MHZ-IN 1049.76MHZ-OUT 100-PIN TQFP EP

Search across all available documentation for this part.

Active

Skyworks Solutions Inc.

CLOCK GENERATOR 0.008MHZ TO 707.35MHZ-IN 1049.76MHZ-OUT 100-PIN TQFP EP

Technical Specifications

Parameters and characteristics for this part

Specification	SI5366-C-GQ

Differential - Input:Output [custom]	True
Differential - Input:Output [custom]	True
Divider/Multiplier	No
Divider/Multiplier	Yes
Frequency - Max [Max]	1.05 GHz
Input	Clock
Mounting Type	Surface Mount
Number of Circuits	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	LVCMOS, CML, LVDS, LVPECL
Package / Case	100-TQFP
PLL	True
Ratio - Input:Output	4:5
Supplier Device Package	100-TQFP (14x14)
Type	Jitter Attenuator, Clock Multiplier
Voltage - Supply [Max]	2.75 V
Voltage - Supply [Min]	1.71 V

Part	Output	Voltage - Supply [Min]	Voltage - Supply [Max]	Input	Divider/Multiplier	Divider/Multiplier	Mounting Type	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Ratio - Input:Output	Number of Circuits	PLL	Differential - Input:Output [custom]	Differential - Input:Output [custom]	Frequency - Max [Max]	Type	Package / Case
Skyworks Solutions Inc. SI5366-C-GQ	CML LVCMOS LVDS LVPECL	1.71 V	2.75 V	Clock	No	Yes	Surface Mount	100-TQFP (14x14)	85 °C	-40 °C	4:5	1				1.05 GHz	Clock Multiplier Jitter Attenuator	100-TQFP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	90	$ 37.14

General part information

Clock Multiplier, Jitter Attenuator IC 1.05GHz 1 100-TQFP

Technical documentation and resources
