Specification	2153231022

Cable Termination	Crimp
Color	Black, Individual
Connector Type	Plug to Individual Wire Leads
Contact Finish	Tin
Contact Finish Thickness	100 µin
Features	Latch Lock
Length	0.984 ft
Number of Positions	2
Number of Rows	1
Pitch - Connector	0.165 in
Shielding	Unshielded

215323 Series

Part	Color	Number of Positions	Features	Number of Rows	Contact Finish Thickness	Contact Finish	Connector Type	Cable Termination	Length	Pitch - Connector	Shielding
Molex 2153232062	Black Individual	6	Latch Lock	1	30 µin	Gold	Plug to Individual Wire Leads	Crimp	0.984 ft	0.165 in	Unshielded

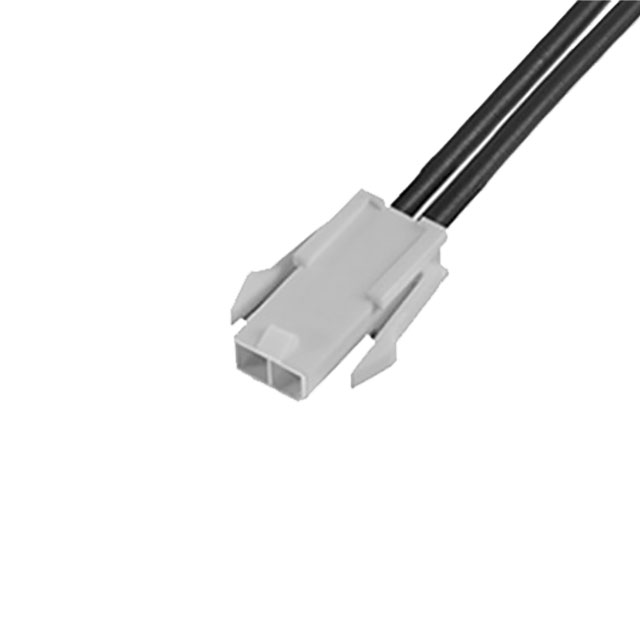

Molex 2153231023	Black Individual	2	Latch Lock	1	100 µin	Tin	Plug to Individual Wire Leads	Crimp	1.97 ft	0.165 in	Unshielded
Molex 2153231051	Black Individual	5	Latch Lock	1	100 µin	Tin	Plug to Individual Wire Leads	Crimp	0.492 ft	0.165 in	Unshielded
Molex 2153232032	Black Individual	3	Latch Lock	1	30 µin	Gold	Plug to Individual Wire Leads	Crimp	0.984 ft	0.165 in	Unshielded
Molex 2153231061	Black Individual	6		1	100 µin	Tin	Plug to Individual Wire Leads	Crimp	0.492 ft	0.165 in	Unshielded
Molex 2153232042	Black Individual	4	Latch Lock	1	30 µin	Gold	Plug to Individual Wire Leads	Crimp	0.984 ft	0.165 in	Unshielded
Molex 2153231063	Black Individual	6	Latch Lock	1	100 µin	Tin	Plug to Individual Wire Leads	Crimp	1.97 ft	0.165 in	Unshielded
Molex 2153231042	Black Individual	4	Latch Lock	1	100 µin	Tin	Plug to Individual Wire Leads	Crimp	0.984 ft	0.165 in	Unshielded
Molex 2153232021	Black Individual	2	Latch Lock	1	30 µin	Gold	Plug to Individual Wire Leads	Crimp	0.492 ft	0.165 in	Unshielded
Molex 2153231022	Black Individual	2	Latch Lock	1	100 µin	Tin	Plug to Individual Wire Leads	Crimp	0.984 ft	0.165 in	Unshielded
