Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T2019092101-000 | T201 Series |
|---|---|---|
| Connector Type | Insert without Contacts | Insert without Contacts |
| Contact Type | DDM, CDM | DDF, CDF, DDM, CDM |
| Current Rating (Amps) | 16 A | 16 A |
| Gender | Male | Female, Male |
| Housing Material | Polycarbonate (PC) | Polycarbonate (PC) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Number of Positions | 8+Ground | 8+Ground, 16+Ground |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Size | H8A | H8A, H16A |
| Termination Style | Crimp | Crimp |
| Voltage Rating | 500 V | 250 - 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.81 | |
| 10 | $ 6.64 | |||
| 30 | $ 6.14 | |||
| 50 | $ 5.92 | |||
| 100 | $ 5.64 | |||
| 250 | $ 5.29 | |||
| 500 | $ 5.04 | |||
| 1000 | $ 4.80 | |||
T201 Series
HQ-008-F
| Part | Number of Positions | Housing Material | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Material Flammability Rating | Current Rating (Amps) | Termination Style | Voltage Rating | Contact Type | Size | Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T2019092201-000 | 8+Ground | Polycarbonate (PC) | 125 °C | -40 °C | Insert without Contacts | UL94 V-0 | 16 A | Crimp | 500 V | CDF, DDF | H8A | Female |
TE Connectivity AMP Connectors T2010324101-000 | 16+Ground | Polycarbonate (PC) | 125 °C | -40 °C | Insert without Contacts | UL94 V-0 | 16 A | Crimp | 250 VDC | CDM, DDM | H16A | Male |
TE Connectivity AMP Connectors T2019092101-000 | 8+Ground | Polycarbonate (PC) | 125 °C | -40 °C | Insert without Contacts | UL94 V-0 | 16 A | Crimp | 500 V | CDM, DDM | H8A | Male |
Description
General part information
T201 Series

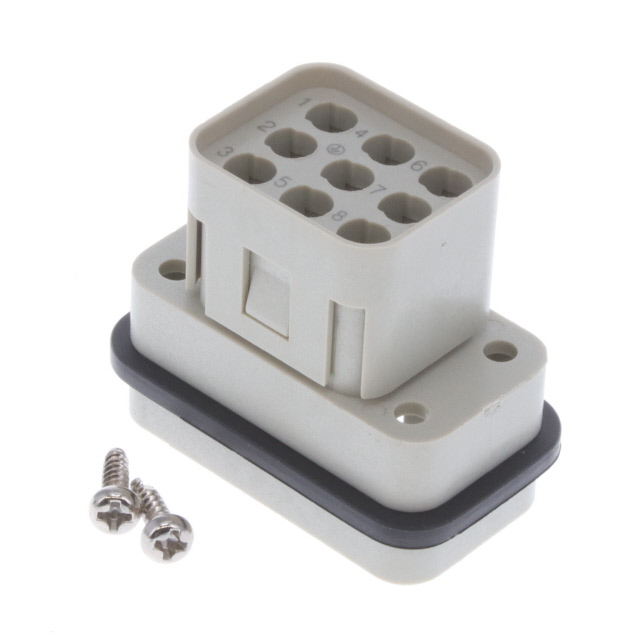

Male Insert without Contacts 8+Ground Position Crimp
Documents
Technical documentation and resources
