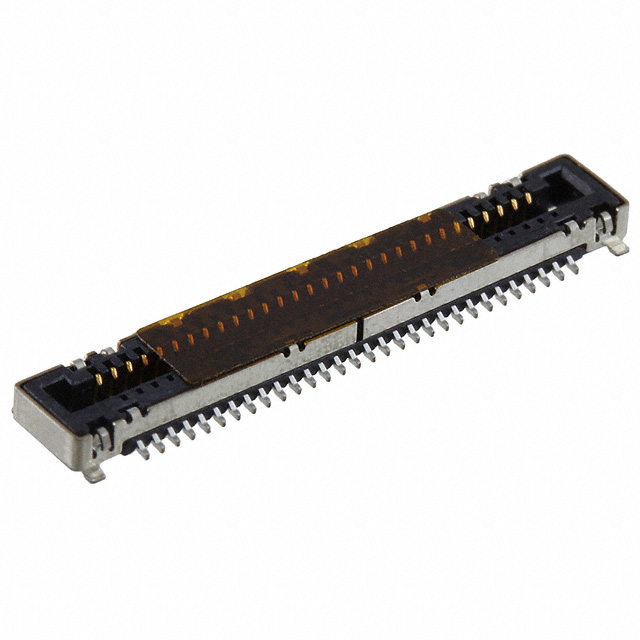

FI-G30S-VF25

Obsolete

JAE Electronics

CONN RCPT 30POS 0.02 GOLD SMD

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN RCPT 30POS 0.02 GOLD SMD

Technical Specifications

Parameters and characteristics for this part

Specification	FI-G30S-VF25

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.099 µm
Contact Finish Thickness - Mating	3.9 µin
Contact Material	Copper Alloy
Contact Type	Non-Gendered
Fastening Type	Latch Holder
Features	Solder Retention
Insulation Color	Black
Insulation Height	1.36 mm
Insulation Height	0.054 "
Insulation Material	Plastic
Mated Stacking Heights [z]	2.4 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	0.02 in
Pitch - Mating	0.5 mm
Style	Board to Cable/Wire
Termination	Solder

Part	Number of Positions Loaded	Fastening Type	Insulation Material	Connector Type	Mounting Type	Number of Rows	Insulation Color	Contact Finish - Mating	Contact Material	Material Flammability Rating	Insulation Height	Insulation Height	Features	Contact Type	Number of Positions	Style	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mated Stacking Heights [z]	Contact Finish - Post	Pitch - Mating	Pitch - Mating	For Use With/Related Products	Accessory Type
JAE Electronics FI-G30S-VF25	All	Latch Holder	Plastic	Receptacle	Surface Mount	1	Black	Gold	Copper Alloy	UL94 V-0	1.36 mm	0.054 "	Solder Retention	Non-Gendered	30	Board to Cable/Wire	Solder	0.099 µm	3.9 µin	2.4 mm	Tin	0.02 in	0.5 mm
JAE Electronics FI-G30C2-SH-B2-8000															30									FI-G Series	Cap (Cover)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

30 Position Receptacle Connector 0.020" (0.50mm) Surface Mount Gold

Technical documentation and resources

No documents available
