EDAC Inc.

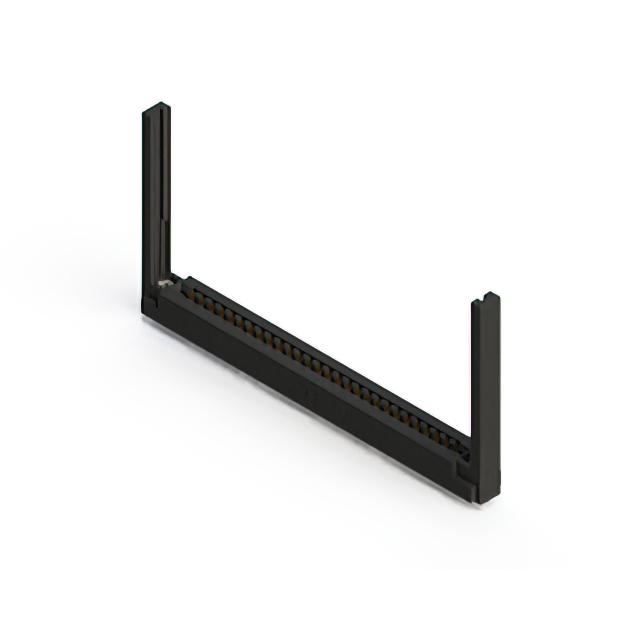

CONN EDGE DUAL FMALE 56POS 0.156

357-028-541-168

Active

EDAC Inc.

CONN EDGE DUAL FMALE 56POS 0.156

Description Specifications Series Pricing CAD Documents

Description

General part information

357-028 Series

56 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black

Technical Specifications

Parameters and characteristics for this part

Specification	357-028-541-168

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Features	Card Guides
Flange Feature	Flush Mount, Top Opening, Threaded Insert, 4-40
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	28, 56
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in
Read Out	Dual
Termination	Wire Wrap
Termination Rows	1 rows

357-028 Series

...

Part	Contact Material	Contact Finish	Operating Temperature (Min)	Operating Temperature (Max)	Flange Feature Diameter	Flange Feature	Gender	Number of Rows	Card Type	Mounting Type	Pitch	Number of Positions	Contact Type	Card Thickness (Min)	Card Thickness (Max)	Contact Finish Thickness	Color	Read Out	Termination	Material - Insulation	Termination Rows	Features
EDAC Inc. 357-028-557-104	Copper Alloy	Gold	-40 °C	105 °C	0.156 in	Flush Mount Top Opening Unthreaded	Female	2	Dual Edge Non Specified	Right Angle Through Hole	0.156 in	28 56	Semi Bellows	0.054 in	0.07 in	10 Ąin	Black	Dual	Wire Wrap	Polyester Thermoplastic	1 rows
EDAC Inc. 357-028-520-202	Copper Alloy	Gold	-40 °C	105 °C	0.128 in	Flush Mount Top Opening Unthreaded	Female	2	Dual Edge Non Specified	Through Hole	0.156 in	14 28	Semi Bellows	0.054 in	0.07 in	10 Ąin	Black	Dual	Solder	Polyester Thermoplastic	2 rows
EDAC Inc. 357-028-541-168	Copper Alloy	Gold	-40 °C	105 °C		4-40 Flush Mount Threaded Insert Top Opening	Female	2	Dual Edge Non Specified	Through Hole	0.156 in	28 56	Semi Bellows	0.054 in	0.07 in	10 Ąin	Black	Dual	Wire Wrap	Polyester Thermoplastic	1 rows	Card Guides
EDAC Inc. 357-028-401-108	Copper Alloy	Tin	-40 °C	105 °C		4-40 Flush Mount Threaded Insert Top Opening	Female	2	Dual Edge Non Specified	Through Hole	0.156 in	28 56	Semi Bellows	0.054 in	0.07 in		Black	Dual	Solder Eyelet(s)	Polyester Thermoplastic	1 rows
EDAC Inc. 357-028-422-204	Copper Alloy	Tin	-40 °C	105 °C	0.156 in	Flush Mount Top Opening Unthreaded	Female	2	Dual Edge Non Specified	Through Hole	0.156 in	14 28	Semi Bellows	0.054 in	0.07 in		Black	Dual	Solder	Polyester Thermoplastic	2 rows
EDAC Inc. 357-028-401-112	Copper Alloy	Tin	-40 °C	105 °C	0.128 in	Flush Mount Side Opening Unthreaded	Female	2	Dual Edge Non Specified	Through Hole	0.156 in	28 56	Semi Bellows	0.054 in	0.07 in		Black	Dual	Solder Eyelet(s)	Polyester Thermoplastic	1 rows
EDAC Inc. 357-028-447-102	Copper Alloy	Tin	-40 °C	105 °C	0.128 in	Flush Mount Top Opening Unthreaded	Female	1	Non Specified Single Edge	Through Hole	0.156 in	28	Semi Bellows	0.054 in	0.07 in		Black	Single	Wire Wrap	Polyester Thermoplastic	1 rows
EDAC Inc. 357-028-501-107	Copper Alloy	Gold	-40 °C	105 °C		Flush Mount M3 Threaded Insert Top Opening	Female	2	Dual Edge Non Specified	Through Hole	0.156 in	28 56	Semi Bellows	0.054 in	0.07 in	10 Ąin	Black	Dual	Solder Eyelet(s)	Polyester Thermoplastic	1 rows
EDAC Inc. 357-028-556-208	Copper Alloy	Gold	-40 °C	105 °C		4-40 Flush Mount Threaded Insert Top Opening	Female	2	Dual Edge Non Specified	Board Edge Straddle Mount	0.156 in	14 28	Semi Bellows	0.054 in	0.07 in	10 Ąin	Black	Dual	Solder	Polyester Thermoplastic	2 rows	Card Extender
EDAC Inc. 357-028-554-102	Copper Alloy	Gold	-40 °C	105 °C	0.128 in	Flush Mount Top Opening Unthreaded	Female	2	Dual Edge Non Specified	Surface Mount	0.156 in	28 56	Semi Bellows	0.054 in	0.07 in	10 Ąin	Black	Dual	Solder Eyelet(s)	Polyester Thermoplastic	1 rows
