CC2541DK-SENSOR
ActiveTexas Instruments
RF BLUETOOTH SMART DEV KIT
Deep-Dive with AI
Search across all available documentation for this part.
CC2541DK-SENSOR
ActiveTexas Instruments
RF BLUETOOTH SMART DEV KIT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CC2541DK-SENSOR | CC2541 Series |
|---|---|---|
| Current - Receiving | - | 20.2 - 20.8 mA |
| Current - Receiving | - | 17.9 - 18.3 mA |
| Current - Transmitting | - | 18.2 - 18.6 mA |
| Current - Transmitting | - | 16.8 - 17.2 mA |
| Data Rate (Max) | - | 2 MBaud |
| For Use With/Related Products | - | CC2541, CC2540 |
| Frequency | - | 2.4 GHz |
| GPIO | - | 23 |
| Grade | - | Automotive |
| Interface | RF | RF |
| Memory Size | - | 8 - 256 kB |
| Modulation | - | GFSK, MSK |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 85 - 105 ░C |
| Package / Case | - | 40-VFQFN Exposed Pad |
| Power - Output | - | 0 dBm |
| Protocol | - | Bluetooth v4.0, Bluetooth v5.0 |
| Qualification | - | AEC-Q100 |
| RF Family/Standard | - | Bluetooth |
| Sensitivity | - | -99 - -94 dBm |
| Sensor Type | Magnetometer, Pressure, Accelerometer, Temperature, Humidity, Gyroscope | Magnetometer, Pressure, Accelerometer, Temperature, Humidity, Gyroscope |
| Serial Interfaces | - | I2C, USART, SPI |
| Supplied Contents | Board(s) | Accessories, Cable(s), Board(s) |
| Supplier Device Package | - | 40-VQFN (6x6) |
| Type | - | TxRx + MCU, Transceiver; Bluetooth® Smart 4.x Low Energy (BLE) |
| Utilized IC / Part | CC2541 | CC2541 |
| Voltage - Supply | - | 3.6 V |
| Voltage - Supply | - | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 26.95 | |
CC2541 Series
AUTOMOTIVE QUALIFIED SIMPLELINK BLUETOOTH® LOW ENERGY WIRELESS MCU
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Power - Output | Sensitivity | Voltage - Supply [Max] | Voltage - Supply [Min] | Protocol | Grade | Serial Interfaces | Supplier Device Package | RF Family/Standard | Frequency | Mounting Type | Package / Case | Memory Size | Qualification | GPIO | Type | Current - Transmitting [Max] | Current - Transmitting [Min] | Current - Receiving [Max] | Current - Receiving [Min] | Data Rate (Max) [Max] | Modulation | Supplied Contents | For Use With/Related Products | Interface | Sensor Type | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments CC2541F256TRHARQ1 | -40 °C | 105 ░C | 0 dBm | -94 dBm | 3.6 V | 2 V | Bluetooth v4.0 | Automotive | I2C, SPI, USART | 40-VQFN (6x6) | Bluetooth | 2.4 GHz | Surface Mount | 40-VFQFN Exposed Pad | 8 kB, 256 kB | AEC-Q100 | 23 | TxRx + MCU | 18.6 mA | 17.2 mA | 20.8 mA | 18.3 mA | 2 MBaud | GFSK, MSK | |||||
Texas Instruments CC2541F256RHAR | -40 °C | 85 °C | 0 dBm | -99 dBm | 3.6 V | 2 V | Bluetooth v5.0 | I2C, SPI, USART | 40-VQFN (6x6) | Bluetooth | 2.4 GHz | Surface Mount | 40-VFQFN Exposed Pad | 8 kB, 256 kB | 23 | TxRx + MCU | 18.2 mA | 16.8 mA | 20.2 mA | 17.9 mA | 2 MBaud | GFSK, MSK | |||||||
Texas Instruments CC2541DK-MINI | 2.4 GHz | Transceiver; Bluetooth® Smart 4.x Low Energy (BLE) | Accessories, Board(s), Cable(s) | CC2540, CC2541 | |||||||||||||||||||||||||
Texas Instruments CC2541DK-RC | 2.4 GHz | Transceiver; Bluetooth® Smart 4.x Low Energy (BLE) | Accessories, Board(s) | CC2541 | |||||||||||||||||||||||||
Texas Instruments CC2541DK-SENSOR | Board(s) | RF | Accelerometer, Gyroscope, Humidity, Magnetometer, Pressure, Temperature | CC2541 | |||||||||||||||||||||||||
Texas Instruments CC2541F256RHAT | -40 °C | 85 °C | 0 dBm | -99 dBm | 3.6 V | 2 V | Bluetooth v5.0 | I2C, SPI, USART | 40-VQFN (6x6) | Bluetooth | 2.4 GHz | Surface Mount | 40-VFQFN Exposed Pad | 8 kB, 256 kB | 23 | TxRx + MCU | 18.2 mA | 16.8 mA | 20.2 mA | 17.9 mA | 2 MBaud | GFSK, MSK | |||||||
Texas Instruments CC2541EMK | 2.4 GHz | Transceiver; Bluetooth® Smart 4.x Low Energy (BLE) | Accessories, Board(s) | CC2541 | |||||||||||||||||||||||||
Texas Instruments CC2541F256TRHATQ1 | -40 °C | 105 ░C | 0 dBm | -94 dBm | 3.6 V | 2 V | Bluetooth v4.0 | Automotive | I2C, SPI, USART | 40-VQFN (6x6) | Bluetooth | 2.4 GHz | Surface Mount | 40-VFQFN Exposed Pad | 8 kB, 256 kB | AEC-Q100 | 23 | TxRx + MCU | 18.6 mA | 17.2 mA | 20.8 mA | 18.3 mA | 2 MBaud | GFSK, MSK | |||||
Texas Instruments CC2541F128RHAR | -40 °C | 85 °C | 0 dBm | -99 dBm | 3.6 V | 2 V | Bluetooth v5.0 | I2C, SPI, USART | 40-VQFN (6x6) | Bluetooth | 2.4 GHz | Surface Mount | 40-VFQFN Exposed Pad | 8 kB, 128 kB | 23 | TxRx + MCU | 18.2 mA | 16.8 mA | 20.2 mA | 17.9 mA | 2 MBaud | GFSK, MSK |
Description
General part information
CC2541 Series

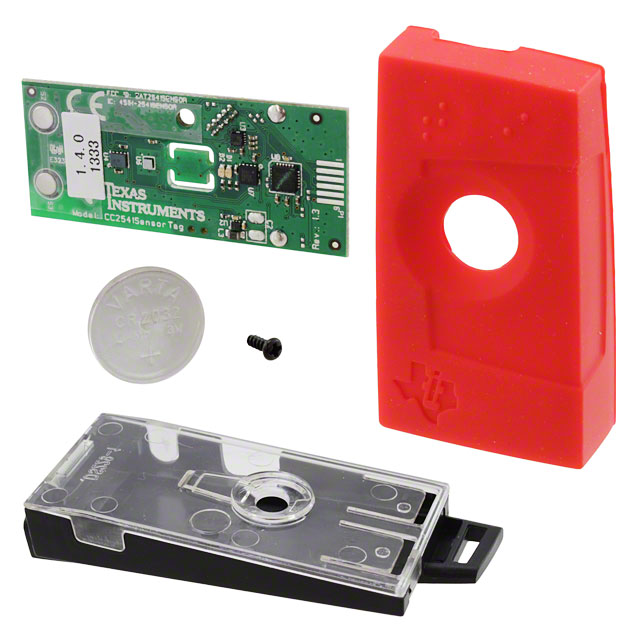

CC2541 SimpleLink™ SensorTag Accelerometer, Gyroscope, Humidity, Magnetometer, Pressure, Temperature Sensor Evaluation Board
