M3CWK-3006R

Active

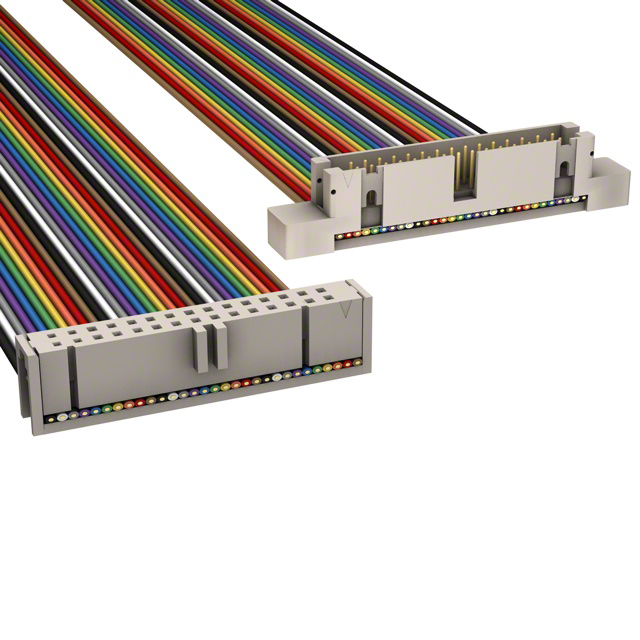

IDC CABLE - MKC30K/MC34M/MPL30K

Deep-Dive with AI

Search across all available documentation for this part.

Documents4600 Series Drawing 3302 Series +1

M3CWK-3006R

Active

IDC CABLE - MKC30K/MC34M/MPL30K

Deep-Dive with AI

Documents4600 Series Drawing 3302 Series +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.03
		10	$ 15.63
		25	$ 14.81
		50	$ 14.60
		100	$ 12.88
		250	$ 12.02
		500	$ 11.76

Description

General part information

M3CWK Series

30 Position Cable Assembly Rectangular Socket to Plug 0.500' (152.40mm, 6.00")

Documents

Technical documentation and resources

4600 Series Drawing

Datasheet

3302 Series

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M3CWK-3006R	M3CWK Series

Cable Termination	IDC	IDC
Color	Ribbon, Multiple	Ribbon, Multiple, Multiple, Twisted Pair (Flat)
Connector Type	Socket to Plug	Socket to Plug
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Features	Polarizing Key (Socket), Polarizing Key (Plug), Flange	Polarizing Key (Socket), Polarizing Key (Plug), Flange
Length	152.4 mm	1.52 - 508 mm
Length	6 "	6 "
Length	0.5 '	0.5 '
Length	-	1.5 - 3.34 ft
Length	-	1.02 - 914.4 mm
Length	-	1.67 - 5 ft
Number of Positions	30	10 - 60
Number of Positions	-	16
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded

M3CWK Series

IDC CABLE - MKC20K/MC20M/MPL20K

Part	Cable Termination	Shielding	Connector Type	Pitch - Connector	Pitch - Connector	Number of Rows	Contact Finish	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Pitch - Cable	Pitch - Cable	Color	Length [x]	Length [x]	Features	Length	Length	Length	Number of Positions	Length
3M M3CWK-2036R	IDC	Unshielded	Socket to Plug	0.1 in	2.54 mm	2	Gold	20	0.76 Ám	30 Áin	0.05 "	1.27 mm	Multiple, Ribbon	3 ft	914.4 mm	Flange, Polarizing Key (Plug), Polarizing Key (Socket)
3M M3CWK-2018R	IDC	Unshielded	Socket to Plug	0.1 in	2.54 mm	2	Gold	20	0.76 Ám	30 Áin	0.05 "	1.27 mm	Multiple, Ribbon	1.5 ft	457.2 mm	Flange, Polarizing Key (Plug), Polarizing Key (Socket)
3M M3CWK-6006J	IDC	Unshielded	Socket to Plug	0.1 in	2.54 mm	2	Gold	60	0.76 Ám	30 Áin	0.05 "	1.27 mm				Flange, Polarizing Key (Plug), Polarizing Key (Socket)	152.4 mm	6 "	0.5 '
3M M3CWK-6036J	IDC	Unshielded	Socket to Plug	0.1 in	2.54 mm	2	Gold	60	0.76 Ám	30 Áin	0.05 "	1.27 mm		3 ft	914.4 mm	Flange, Polarizing Key (Plug), Polarizing Key (Socket)
3M M3CWK-1618J	IDC	Unshielded	Socket to Plug	0.1 in	2.54 mm	2	Gold		0.76 Ám	30 Áin	0.05 "	1.27 mm		1.5 ft	457.2 mm	Flange, Polarizing Key (Plug), Polarizing Key (Socket)				16
3M M3CWK-2618R	IDC	Unshielded	Socket to Plug	0.1 in	2.54 mm	2	Gold	26	0.76 Ám	30 Áin	0.05 "	1.27 mm	Multiple, Ribbon	1.5 ft	457.2 mm	Flange, Polarizing Key (Plug), Polarizing Key (Socket)
3M M3CWK-1636R	IDC	Unshielded	Socket to Plug	0.1 in	2.54 mm	2	Gold		0.76 Ám	30 Áin	0.05 "	1.27 mm	Multiple, Ribbon	3 ft	914.4 mm	Flange, Polarizing Key (Plug), Polarizing Key (Socket)				16
3M M3CWK-1006R	IDC	Unshielded	Socket to Plug	0.1 in	2.54 mm	2	Gold	10	0.76 Ám	30 Áin	0.05 "	1.27 mm	Multiple, Ribbon			Flange, Polarizing Key (Plug), Polarizing Key (Socket)	152.4 mm	6 "	0.5 '
3M M3CWK-5020K	IDC	Unshielded	Socket to Plug	0.1 in	2.54 mm	2	Gold	50	0.76 Ám	30 Áin	0.05 "	1.27 mm	Multiple, Twisted Pair (Flat)			Flange, Polarizing Key (Plug), Polarizing Key (Socket)	508 mm				1.67 ft
3M M3CWK-3006R	IDC	Unshielded	Socket to Plug	0.1 in	2.54 mm	2	Gold	30	0.76 Ám	30 Áin	0.05 "	1.27 mm	Multiple, Ribbon			Flange, Polarizing Key (Plug), Polarizing Key (Socket)	152.4 mm	6 "	0.5 '
