T940N18TOFXPSA1
ActiveInfineon Technologies

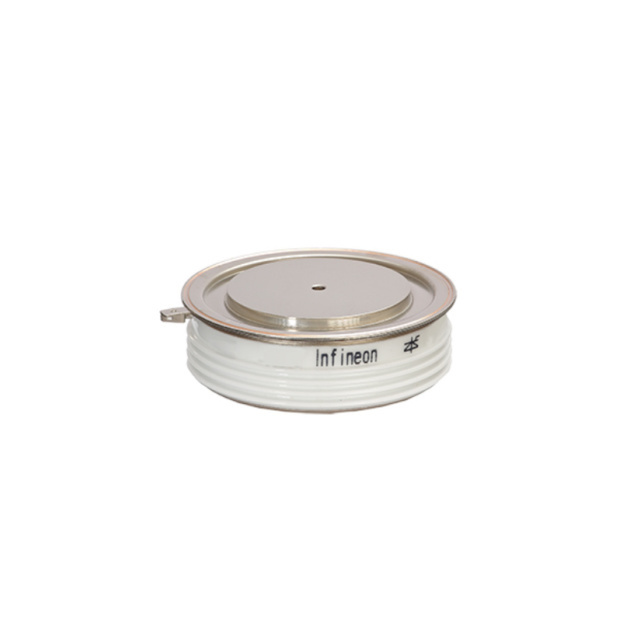

1800 V ELECTRICAL TRIGGERED PHASE CONTROL THYRISTOR DISC ASSEMBLED IN A HERMETIC SEALED CERAMIC HOUSING WITH A 58 MM DIA AND A HEIGHT OF 14 MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T940N18TOFXPSA1
ActiveInfineon Technologies
1800 V ELECTRICAL TRIGGERED PHASE CONTROL THYRISTOR DISC ASSEMBLED IN A HERMETIC SEALED CERAMIC HOUSING WITH A 58 MM DIA AND A HEIGHT OF 14 MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | T940N18TOFXPSA1 |
|---|---|
| Current - Gate Trigger (Igt) (Max) [Max] | 250 mA |
| Current - Hold (Ih) (Max) [Max] | 300 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 17500 A |
| Current - On State (It (AV)) (Max) | 959 A |
| Current - On State (It (RMS)) (Max) | 1759 A |
| Mounting Type | Clamp On |
| Number of SCRs, Diodes | 1 SCR |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | B-PUK, DO-200AB |
| Structure | Single |
| Voltage - Gate Trigger (Vgt) (Max) [Max] | 2.2 V |
| Voltage - Off State | 1.8 kV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 9 | $ 150.29 | |
Description
General part information
T940N18 Series
The T940NPhase Control Thyristor discsare assembled in high reliable, robust and hermetic sealed ceramic housings with a dia of 58mm and a height of 14mm.
