TRAPC6MX

Active

Switchcraft Inc.

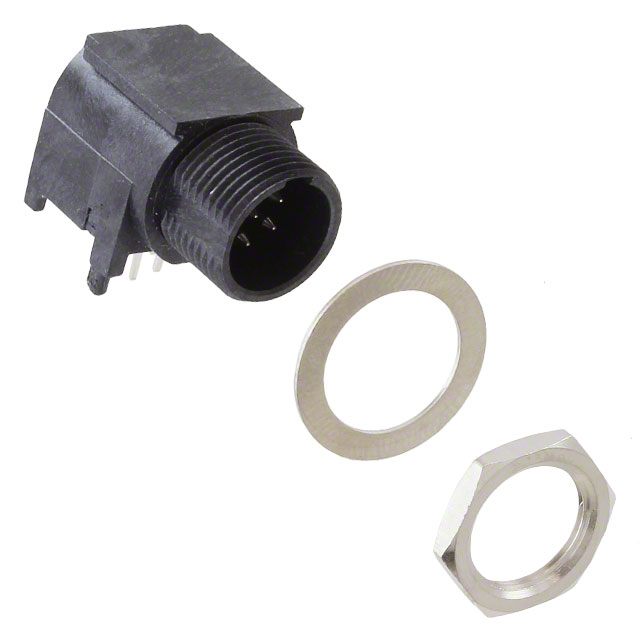

CONN RCPT MALE MINI XLR 6P SLDR

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE MINI XLR 6P SLDR

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TRAPC6MX	TRAPC6 Series

Applications	Medical, Testing Equipment & Measurement, Audio	Medical, Testing Equipment & Measurement, Audio
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Material	Brass	Brass
Current Rating (Amps)	1.5 A	1.5 A
Fastening Type	Latch Lock	Latch Lock
Features	Board Guide	Board Guide
Insert Material	Thermoplastic	Thermoplastic
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	6	6
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shell Size - Insert	Mini XLR	Mini XLR
Termination	Solder	Solder

CONN XLR CONNECTOR M 6 POS 2.54MM SOLDER RA THRU-HOLE 6 TERMINAL 1 PORT BULK

Part	Applications	Primary Material	Connector Type	Color	Features	Orientation	Contact Material	Fastening Type	Shell Size - Insert	Insert Material	Termination	Current Rating (Amps)	Mounting Type	Number of Positions	Mounting Feature
Switchcraft Inc. TRAPC6M1X	Audio, Medical, Testing Equipment & Measurement	Plastic	Male Pins, Receptacle	Black	Board Guide	Keyed	Brass	Latch Lock	Mini XLR	Thermoplastic	Solder	1.5 A	Through Hole, Right Angle	6
Switchcraft Inc. TRAPC6MX	Audio, Medical, Testing Equipment & Measurement	Plastic	Male Pins, Receptacle	Black	Board Guide	Keyed	Brass	Latch Lock	Mini XLR	Thermoplastic	Solder	1.5 A	Through Hole, Right Angle	6	Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

6 Position Circular Connector Receptacle, Male Pins Solder
