Q-1W0550008084i

Active

Amphenol Custom Cable

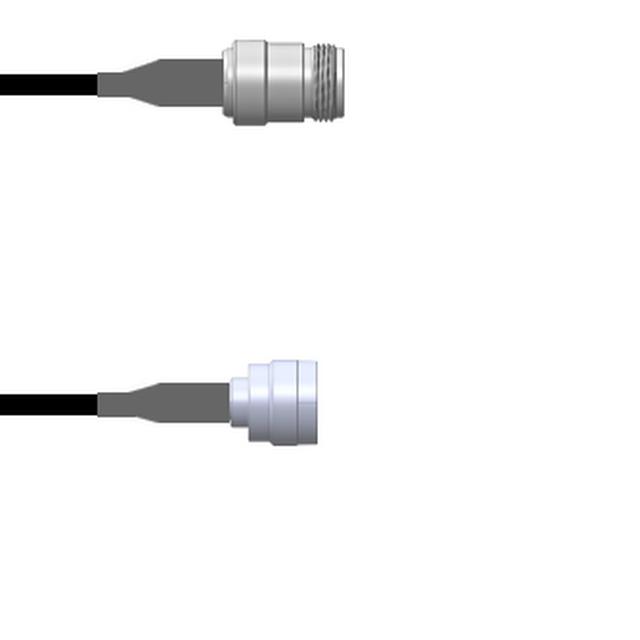

CBL ASSY NTYPE-TNC JACK-PLUG 7'

Deep-Dive with AI

Search across all available documentation for this part.

Q-1W0550008084i

Active

Amphenol Custom Cable

CBL ASSY NTYPE-TNC JACK-PLUG 7'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1W0550008084i

1st Connector	N-Type Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	TNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	84 in
Length	2.1 m
Length	7 ft
Overall Impedance	50 Ohms

Q-1W0550 Series

Part	2nd Contact Gender	Length	Length	Length	1st Connector	2nd Connector	Cable Type	Color	1st Connector Mounting Type	Features	1st Contact Gender	2nd Connector Mounting Type	Overall Impedance	Frequency - Max [Max]	Length [x]	Length [x]
Amphenol Custom Cable Q-1W05500081.5M	Male	59.1 in	4.9 ft	1.5 m	N-Type Jack	TNC Plug	RG-58	Black	Free Hanging (In-Line)	Shielded	Female	Free Hanging (In-Line)	50 Ohms	11 GHz
Amphenol Custom Cable Q-1W0550008048i	Male	48 in	4 ft	1200 mm	N-Type Jack	TNC Plug	RG-58	Black	Free Hanging (In-Line)	Shielded	Female	Free Hanging (In-Line)	50 Ohms	11 GHz
Amphenol Custom Cable Q-1W0550008.25M	Male				N-Type Jack	TNC Plug	RG-58	Black	Free Hanging (In-Line)	Shielded	Female	Free Hanging (In-Line)	50 Ohms	11 GHz	9.843 "	250 mm
Amphenol Custom Cable Q-1W0550008084i	Male	84 in	7 ft	2.1 m	N-Type Jack	TNC Plug	RG-58	Black	Free Hanging (In-Line)	Shielded	Female	Free Hanging (In-Line)	50 Ohms	11 GHz
Amphenol Custom Cable Q-1W0550008.75M	Male	29.53 "		750 mm	N-Type Jack	TNC Plug	RG-58	Black	Free Hanging (In-Line)	Shielded	Female	Free Hanging (In-Line)	50 Ohms	11 GHz
Amphenol Custom Cable Q-1W0550008108i	Male	108 in	9 ft	2.7 m	N-Type Jack	TNC Plug	RG-58	Black	Free Hanging (In-Line)	Shielded	Female	Free Hanging (In-Line)	50 Ohms	11 GHz
Amphenol Custom Cable Q-1W0550008002M	Male	78.7 in	6.6 ft	2 m	N-Type Jack	TNC Plug	RG-58	Black	Free Hanging (In-Line)	Shielded	Female	Free Hanging (In-Line)	50 Ohms	11 GHz
Amphenol Custom Cable Q-1W05500082.5M	Male	98.4 in	8.2 '	2.5 m	N-Type Jack	TNC Plug	RG-58	Black	Free Hanging (In-Line)	Shielded	Female	Free Hanging (In-Line)	50 Ohms	11 GHz
Amphenol Custom Cable Q-1W0550008009i	Male	9 "		228.6 mm	N-Type Jack	TNC Plug	RG-58	Black	Free Hanging (In-Line)	Shielded	Female	Free Hanging (In-Line)	50 Ohms	11 GHz
Amphenol Custom Cable Q-1W0550008024i	Male	24 "		609.6 mm	N-Type Jack	TNC Plug	RG-58	Black	Free Hanging (In-Line)	Shielded	Female	Free Hanging (In-Line)	50 Ohms	11 GHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 74.11
		25	$ 72.67
		50	$ 71.23
		100	$ 69.80
		250	$ 68.36

Description

General part information

Q-1W0550 Series

Cable Assembly Coaxial N-Type to TNC RG-58 84.0" (2.1m) 7.0'

Documents

Technical documentation and resources

No documents available
