M80-4815005

Active

Harwin Inc.

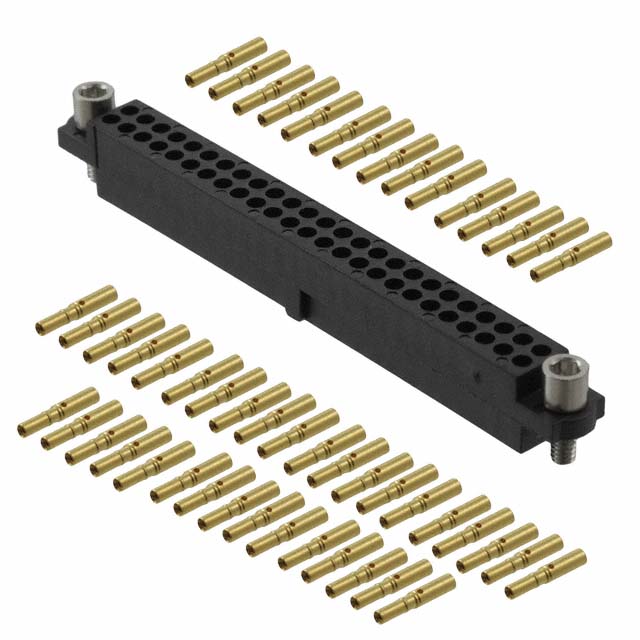

CONN RCPT 50POS CRIMP 24-28AWG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80, M83 Series Spec Sheet Datasheet +2

M80-4815005

Active

Harwin Inc.

CONN RCPT 50POS CRIMP 24-28AWG

Deep-Dive with AI

DocumentsM80, M83 Series Spec Sheet Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-4815005

Cable Termination	Crimp
Color	Black
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.3 Ám
Contact Finish Thickness	11.8 Áin
Contact Type	Female Socket
Features	Jackscrews
Mounting Type	Free Hanging (In-Line)
Number of Positions	50
Number of Rows	2
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in
Wire Gauge [Max]	28 AWG
Wire Gauge [Min]	24 AWG
Wire Type	Discrete

M80-481 Series

Part	Row Spacing	Row Spacing	Connector Type	Wire Gauge [Min]	Wire Gauge [Max]	Cable Termination	Wire Type	Number of Rows	Mounting Type	Contact Finish	Color	Number of Positions	Features	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Pitch [x]	Pitch [x]	Number of Positions
Harwin Inc. M80-4813005	2 mm	0.079 in	Receptacle	24 AWG	28 AWG	Crimp	Discrete	2	Free Hanging (In-Line)	Gold	Black	30	Jackscrews	0.3 Ám	11.8 Áin	Female Socket	0.079 in	2 mm
Harwin Inc. M80-4811642	2 mm	0.079 in	Receptacle	24 AWG	28 AWG	Crimp	Discrete	2	Free Hanging (In-Line)	Gold	Black		Jackscrews	0.3 Ám	11.8 Áin	Female Socket	0.079 in	2 mm	16
Harwin Inc. M80-4815042	2 mm	0.079 in	Receptacle	24 AWG	28 AWG	Crimp	Discrete	2	Free Hanging (In-Line)	Gold	Black	50	Jackscrews	0.3 Ám	11.8 Áin	Female Socket	0.079 in	2 mm
Harwin Inc. M80-4811242	2 mm	0.079 in	Receptacle	24 AWG	28 AWG	Crimp	Discrete	2	Free Hanging (In-Line)	Gold	Black	12	Jackscrews	0.3 Ám	11.8 Áin	Female Socket	0.079 in	2 mm
Harwin Inc. M80-4811405	2 mm	0.079 in	Receptacle	24 AWG	28 AWG	Crimp	Discrete	2	Free Hanging (In-Line)	Gold	Black	14	Jackscrews	0.3 Ám	11.8 Áin	Female Socket	0.079 in	2 mm
Harwin Inc. M80-4810405	2 mm	0.079 in	Receptacle	24 AWG	28 AWG	Crimp	Discrete	2	Free Hanging (In-Line)	Gold	Black	4	Jackscrews	0.3 Ám	11.8 Áin	Female Socket	0.079 in	2 mm
Harwin Inc. M80-4814442	2 mm	0.079 in	Receptacle	24 AWG	28 AWG	Crimp	Discrete	2	Free Hanging (In-Line)	Gold	Black	44	Jackscrews	0.3 Ám	11.8 Áin	Female Socket	0.079 in	2 mm
Harwin Inc. M80-4810805	2 mm	0.079 in	Receptacle	24 AWG	28 AWG	Crimp	Discrete	2	Free Hanging (In-Line)	Gold	Black	8	Jackscrews	0.3 Ám	11.8 Áin	Female Socket	0.079 in	2 mm
Harwin Inc. M80-4812205	2 mm	0.079 in	Receptacle	24 AWG	28 AWG	Crimp	Discrete	2	Free Hanging (In-Line)	Gold	Black	22 positions	Jackscrews	0.3 Ám	11.8 Áin	Female Socket	0.079 in	2 mm
Harwin Inc. M80-4815005	2 mm	0.079 in	Receptacle	24 AWG	28 AWG	Crimp	Discrete	2	Free Hanging (In-Line)	Gold	Black	50	Jackscrews	0.3 Ám	11.8 Áin	Female Socket	0.079 in	2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 46.03
		10	$ 35.62
		25	$ 32.32
		50	$ 30.09
		100	$ 28.07
		250	$ 25.69

Description

General part information

M80-481 Series

50 Position Rectangular Receptacle Connector Crimp Gold 24-28 AWG
