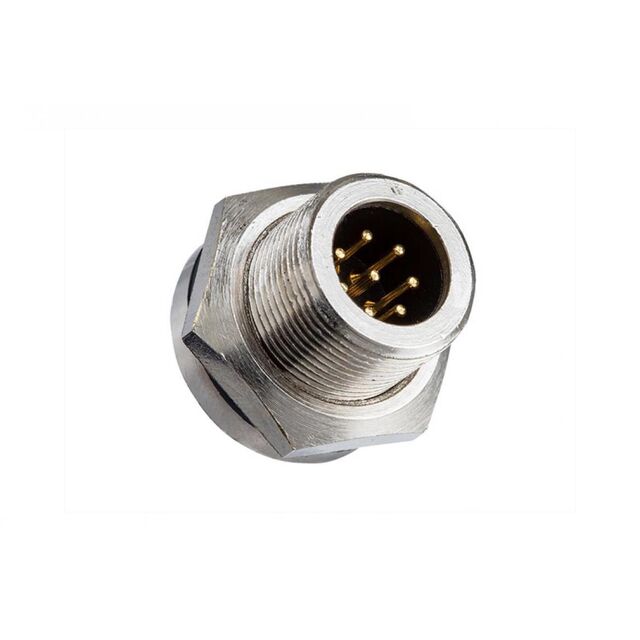

BSD-07PMMS-SC7001

Active

Amphenol LTW

CERES, STANDARD SIZE, METAL, 5A, 07 PINS, MALE CONNECTOR, MALE CONTACT, CIRCULAR, SCREW THREAD, SOLDER, RECEPTACLE, IP67 ROHS CO

Search across all available documentation for this part.

Active

Amphenol LTW

CERES, STANDARD SIZE, METAL, 5A, 07 PINS, MALE CONNECTOR, MALE CONTACT, CIRCULAR, SCREW THREAD, SOLDER, RECEPTACLE, IP67 ROHS CO

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish - Mating	Primary Material	Shell Material	Ingress Protection	Shielding	Orientation	Termination	Voltage Rating	Color	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Positions	Contact Material	Shell Size - Insert	Connector Type	Current Rating (Amps)	Shell Finish
Amphenol LTW BSD-07PMMS-SC7001	Gold	Metal	Brass	IP67 - Dust Tight Waterproof	Shielded	Keyed	Solder	250 VDC	Silver	Bulkhead - Front Side Nut	-40 °C	105 ░C	Through Hole Right Angle	7	Copper Alloy	B	Male Pins Receptacle	5 A	Nickel
Amphenol LTW BSD-07PMMS-SS7001	Gold	Metal	Brass	IP67 - Dust Tight Waterproof	Shielded	Keyed	Solder	250 VDC	Silver	Flange	-40 °C	105 ░C	Through Hole Right Angle	7	Copper Alloy	B	Male Pins Receptacle	5 A	Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Receptacle, Male Pins Solder
