A17752-05

Active

Laird Technologies - Thermal Materials

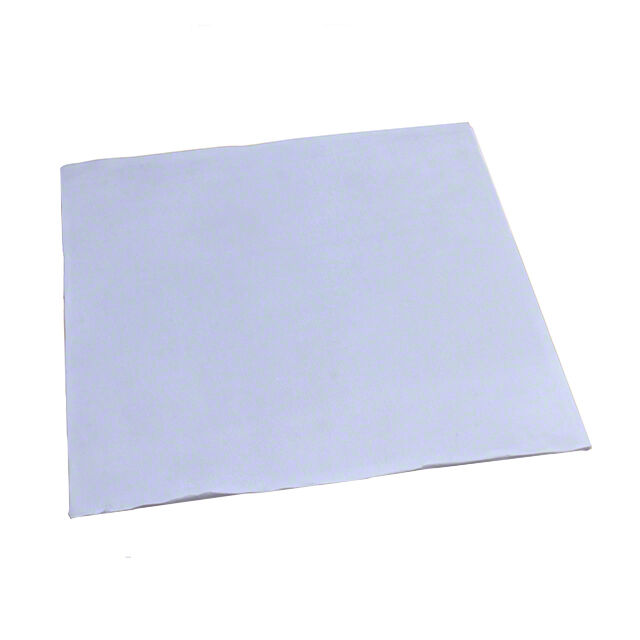

THERM PAD 228.6MMX228.6MM GRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsThermal Interface Solutions Datasheet

A17752-05

Active

Laird Technologies - Thermal Materials

THERM PAD 228.6MMX228.6MM GRAY

Deep-Dive with AI

DocumentsThermal Interface Solutions Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A17752-05

Adhesive	Tacky - Both Sides
Color	Gray
Material	Silicone, Ceramic Filled
Outline [x]	228.6 mm
Outline [y]	228.6 mm
Shape	Square
Shelf Life	12 Months
Shelf Life Start	Date of Shipment
Thermal Conductivity	7.5 W/m-K
Thickness	1.25 mm
Thickness	0.0492 in
Type	Gap Filler Pad, Sheet

A17752 Series

Part	Adhesive	Type	Thickness	Thickness	Shelf Life Start	Shape	Color	Material	Thermal Conductivity	Shelf Life	Outline [x]	Outline [y]	Thickness [z]	Thickness [z]
Laird Technologies - Thermal Materials A17752-10	Tacky - Both Sides	Gap Filler Pad Sheet	2.5 mm	0.0984 in	Date of Shipment	Square	Gray	Ceramic Filled Silicone	7.5 W/m-K	12 Months	228.6 mm	228.6 mm
Laird Technologies - Thermal Materials A17752-08	Tacky - Both Sides	Gap Filler Pad Sheet	2 mm	0.079 in	Date of Shipment	Square	Gray	Ceramic Filled Silicone	7.5 W/m-K	24 Months	228.6 mm	228.6 mm
Laird Technologies - Thermal Materials A17752-19	Tacky - Both Sides	Gap Filler Pad Sheet	4.75 mm	0.187 in	Date of Shipment	Square	Gray	Ceramic Filled Silicone	7.5 W/m-K	12 Months	228.6 mm	228.6 mm
Laird Technologies - Thermal Materials A17752-09	Tacky - Both Sides	Gap Filler Pad Sheet	2.25 mm	0.0886 in	Date of Shipment	Square	Gray	Ceramic Filled Silicone	7.5 W/m-K	12 Months	228.6 mm	228.6 mm
Laird Technologies - Thermal Materials A17752-05	Tacky - Both Sides	Gap Filler Pad Sheet	1.25 mm	0.0492 in	Date of Shipment	Square	Gray	Ceramic Filled Silicone	7.5 W/m-K	12 Months	228.6 mm	228.6 mm
Laird Technologies - Thermal Materials A17752-11	Tacky - Both Sides	Gap Filler Pad Sheet			Date of Shipment	Square	Gray	Ceramic Filled Silicone	7.5 W/m-K	12 Months	228.6 mm	228.6 mm	0.108 in	2.75 mm
Laird Technologies - Thermal Materials A17752-13	Tacky - Both Sides	Gap Filler Pad Sheet	3.25 mm	0.128 in	Date of Shipment	Square	Gray	Ceramic Filled Silicone	7.5 W/m-K	12 Months	228.6 mm	228.6 mm
Laird Technologies - Thermal Materials A17752-14	Tacky - Both Sides	Gap Filler Pad Sheet	3.5 mm	0.138 in	Date of Shipment	Square	Gray	Ceramic Filled Silicone	7.5 W/m-K	12 Months	228.6 mm	228.6 mm
Laird Technologies - Thermal Materials A17752-16	Tacky - Both Sides	Gap Filler Pad Sheet	4 mm	0.157 in	Date of Shipment	Square	Gray	Ceramic Filled Silicone	7.5 W/m-K	12 Months	228.6 mm	228.6 mm
Laird Technologies - Thermal Materials A17752-12	Tacky - Both Sides	Gap Filler Pad Sheet	3 mm	0.118 in	Date of Shipment	Square	Gray	Ceramic Filled Silicone	7.5 W/m-K	12 Months	228.6 mm	228.6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 172.69
		10	$ 152.79
		25	$ 145.50
		50	$ 140.22

Description

General part information

A17752 Series

Thermal Pad Gray 228.60mm x 228.60mm Square Tacky - Both Sides

Documents

Technical documentation and resources

Thermal Interface Solutions

Datasheet
