D4G0303N

Active

ELECTROSWITCH

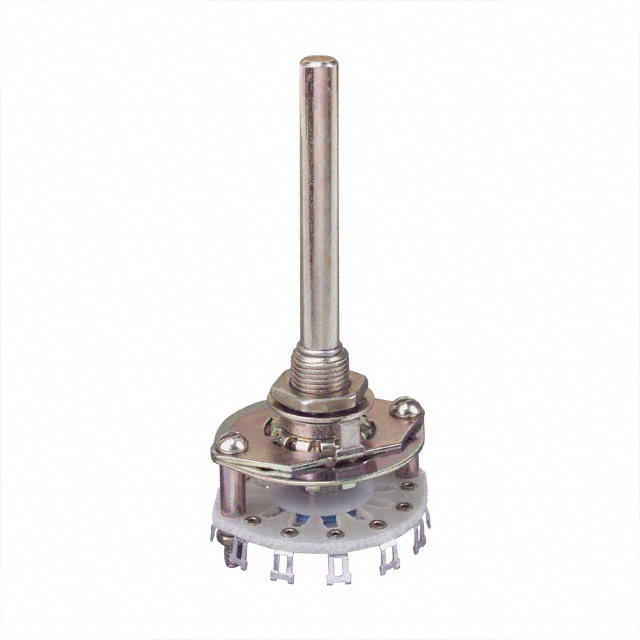

ROTARY SWITCH, 3 POSITION, 3 POLE, 30 °, 500 MA, 115 V, D4 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

D4G0303N

Active

ELECTROSWITCH

ROTARY SWITCH, 3 POSITION, 3 POLE, 30 °, 500 MA, 115 V, D4 SERIES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D4G0303N

Actuator Length [x]	47.63 mm
Actuator Type	Round
Actuator Type [diameter]	6.35 mm
Angle of Throw	30 °
Circuit per Deck	3P3T
Contact Finish	Silver
Contact Material	Brass
Contact Timing	Non-Shorting
Current Rating (Amps)	500 mA, 1.5 A
Depth Behind Panel [z]	14.27 mm
Index Stops	Adjustable
Number of Decks [custom]	1
Number of Poles per Deck	3
Number of Positions [Max]	3
Number of Positions [Min]	2
Panel Cutout Dimensions [diameter]	9.78 mm
Termination Style	Solder Lug
Voltage Rating - AC	115 V
Voltage Rating - DC	28 V

D4G0303 Series

Part	Angle of Throw	Voltage Rating - AC	Actuator Length [x]	Index Stops	Current Rating (Amps)	Depth Behind Panel [z]	Number of Poles per Deck	Termination Style	Voltage Rating - DC	Number of Decks [custom]	Contact Finish	Actuator Type	Actuator Type [diameter]	Number of Positions [Max]	Number of Positions [Min]	Contact Timing	Circuit per Deck	Contact Material	Panel Cutout Dimensions [diameter]
ELECTROSWITCH D4G0303N	30 °	115 V	47.63 mm	Adjustable	1.5 A 500 mA	14.27 mm	3	Solder Lug	28 V	1	Silver	Round	6.35 mm	3	2	Non-Shorting	3P3T	Brass	9.78 mm
ELECTROSWITCH D4G0303S	30 °	115 V	47.63 mm	Adjustable	1.5 A 500 mA	14.27 mm	3	Solder Lug	28 V	1	Silver	Round	6.35 mm	3	2	Shorting	3P3T	Brass	9.78 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 43.63
		5	$ 39.05
		10	$ 36.65
		25	$ 33.60
		50	$ 31.41
		100	$ 29.45
		250	$ 28.36
Newark	Each	1	$ 36.77
		5	$ 33.83
		10	$ 31.26

Description

General part information

D4G0303 Series

The D4G0303N is a 1.5A three-pole three-throw (3P3T) Rotary Switch with glass epoxy, ceramic or diallyl phthalate insulation and brass with silver plate as standard clips and rotors. The D4 series switch is the most economical and versatile switch in our open frame rotary line. This series offers the quality feel of a ball and spring index mechanism and is available with up to 3-position and 30° indexing.
