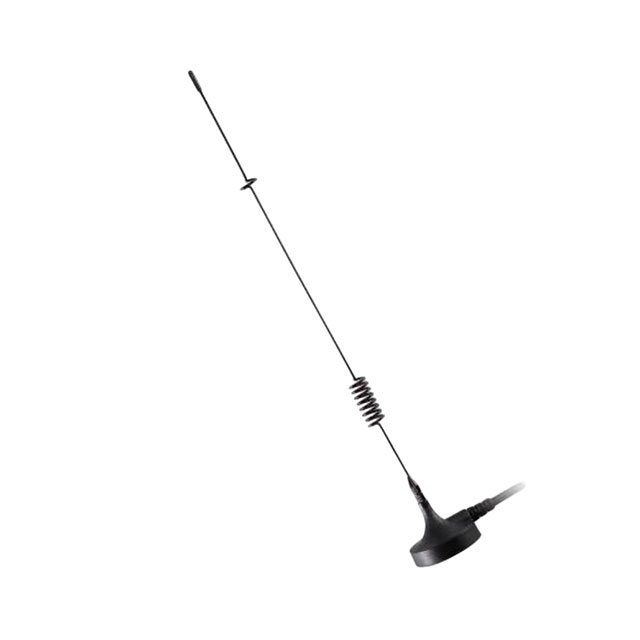

RDP-MB1-MC1-31140-1M-X-001

Active

Raltron Electronics

RF ANT 824-969/1710-2170MHZ WHIP

Search across all available documentation for this part.

Active

Raltron Electronics

RF ANT 824-969/1710-2170MHZ WHIP

Technical Specifications

Parameters and characteristics for this part

RF ANT 824-969/1710-2170MHZ WHIP

Part	Features	Number of Bands	Gain	RF Family/Standard	VSWR	Antenna Type	Frequency (Center/Band)	Frequency Range [Min]	Frequency Range [Max]	Height (Max)	Height (Max) [Max]	Mounting Type	Ingress Protection	Frequency Group	Applications
Raltron Electronics RDP-MB1-MC1-31140-1M-X-001	5 m	2	5 dBi	Cellular	2	Whip, Straight	1.8 GHz, 1.9 GHz, 2.1 GHz, 850 MHz, 868 MHz, 900 MHz	1.71 GHz, 824 MHz	2.17 GHz, 960 MHz	311 mm	12.244 in	Magnetic	IP66, IP67	Wide Band	Cellular, GSM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA Cellular, GSM Whip, Straight SMA Male Magnetic
