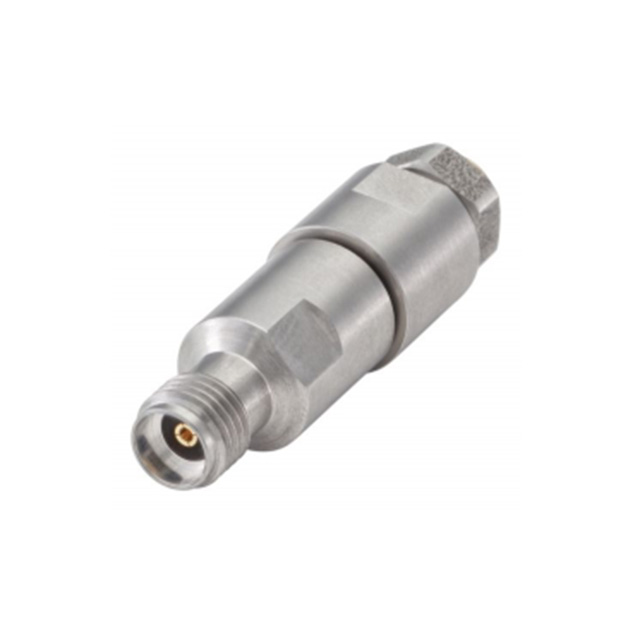

03K121-271S3

Active

Rosenberger

CONN RPC3.50 JACK STR 50OHM

Search across all available documentation for this part.

Active

Rosenberger

CONN RPC3.50 JACK STR 50OHM

Technical Specifications

Parameters and characteristics for this part

CONN RPC3.50 JACK STR 50OHM

Part	Housing Color	Shield Termination	Center Contact Plating	Contact Termination	Frequency - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Impedance	Mounting Type	Center Contact Material	Voltage Rating	Number of Ports	Dielectric Material	Connector Style	Body Material	Connector Type	Mating Cycles
Rosenberger 03K121-271S3	Silver	Solder	Gold	Solder	26.5 GHz	85 °C	-40 °C	50 Ohms	Free Hanging (In-Line)	Beryllium Copper	250 VDC	1	Polystyrene (PS)	3.5 mm	Stainless Steel	Female Socket, Jack	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	-	10	$ 174.03

General part information

3.5mm Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder
