807-044-458-108

Active

EDAC Inc.

CONN EDGE SGL FML 44POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

807-044-458-108

Active

EDAC Inc.

CONN EDGE SGL FML 44POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	807-044-458-108

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole, Right Angle
Number of Positions	44
Number of Positions/Bay/Row [custom]	44
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Solder
Termination Rows	1

807-044 Series

...

Part	Color	Card Type	Material - Insulation	Number of Positions/Bay/Row [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Flange Feature	Gender	Pitch [x]	Pitch [x]	Mounting Type	Number of Rows	Termination Rows	Number of Positions	Contact Type	Contact Material	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish	Read Out	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature [diameter]	Features	Flange Feature	Flange Feature
EDAC Inc. 807-044-458-108	Green	Non Specified - Single Edge	Diallyl Phthalate (DAP)	44	125 °C	-40 °C	Solder	4-40 Flush Mount Threaded Insert Top Opening	Female	0.156 in	3.96 mm	Through Hole Right Angle	1	1	44	Semi Bellows	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	Single
EDAC Inc. 807-044-540-202	Green	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	22	125 °C	-40 °C	Wire Wrap	Flush Mount Top Opening Unthreaded	Female	0.156 in	3.96 mm	Through Hole	2	2	44	Semi Bellows	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Dual	10 Áin	0.25 Ám	3.25 mm	0.128 "
EDAC Inc. 807-044-460-202	Green	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	22	125 °C	-40 °C	Solder	Flush Mount Top Opening Unthreaded	Female	0.156 in	3.96 mm	Board Edge Straddle Mount	2	2	44	Semi Bellows	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	Dual			3.25 mm	0.128 "	Card Extender
EDAC Inc. 807-044-424-212	Green	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	22	125 °C	-40 °C	Solder	Side Mount Opening Unthreaded	Female	0.156 in	3.96 mm	Through Hole	2	2	44	Semi Bellows	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	Dual						3.25 mm	0.128 in
EDAC Inc. 807-044-458-204	Green	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	22	125 °C	-40 °C	Solder	Flush Mount Top Opening Unthreaded	Female	0.156 in	3.96 mm	Through Hole Right Angle	2	2	44	Semi Bellows	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	Single			3.96 mm	0.156 in
EDAC Inc. 807-044-455-201	Green	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	22	125 °C	-40 °C	Solder		Female	0.156 in	3.96 mm	Board Edge Straddle Mount	2	2	44	Semi Bellows	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	Dual					Card Extender
EDAC Inc. 807-044-424-204	Green	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	22	125 °C	-40 °C	Solder	Flush Mount Top Opening Unthreaded	Female	0.156 in	3.96 mm	Through Hole	2	2	44	Semi Bellows	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	Dual			3.96 mm	0.156 in
EDAC Inc. 807-044-522-201	Green	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	22	125 °C	-40 °C	Solder		Female	0.156 in	3.96 mm	Through Hole	2	2	44	Semi Bellows	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Dual	10 Áin	0.25 Ám
EDAC Inc. 807-044-456-207	Green	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	22	125 °C	-40 °C	Solder	Flush Mount M3 Threaded Insert Top Opening	Female	0.156 in	3.96 mm	Board Edge Straddle Mount	2	2	44	Semi Bellows	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	Dual					Card Extender
EDAC Inc. 807-044-559-108	Green	Non Specified - Single Edge	Diallyl Phthalate (DAP)	44	125 °C	-40 °C	Solder	4-40 Flush Mount Threaded Insert Top Opening	Female	0.156 in	3.96 mm	Through Hole Right Angle	1	1	44	Semi Bellows	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Single	10 Áin	0.25 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 157.85
Newark	Each	1	$ 212.05
		100	$ 125.86
		250	$ 114.41
		500	$ 100.77
		1000	$ 82.25

Description

General part information

807-044 Series

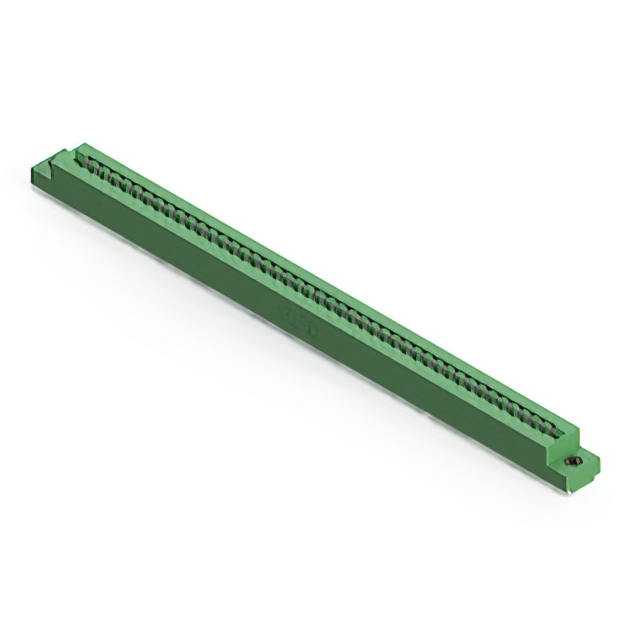

44 Position Female Connector Non Specified - Single Edge Tin 0.156" (3.96mm) Green
