42D36-02-1-AJN
ActiveGrayhill Inc.

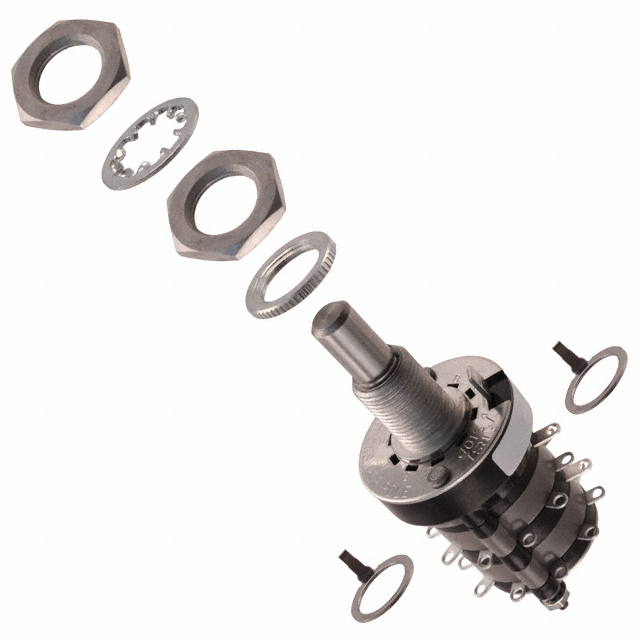

SWITCH ROTARY 2-10POS 1A 115V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
42D36-02-1-AJN
ActiveGrayhill Inc.
SWITCH ROTARY 2-10POS 1A 115V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 42D36-02-1-AJN | 42D36 Series |
|---|---|---|
| Actuator Length [x] | 11.1 mm | 11.1 mm |
| Actuator Type | Flatted | Flatted |
| Actuator Type [diameter] | 6.35 mm | 6.35 mm |
| Angle of Throw | 36 ° | 36 ° |
| Circuit per Deck | SP10T | SP10T, DP5T |
| Contact Material | Silver Alloy | Silver Alloy |
| Contact Timing | Non-Shorting | Non-Shorting, Shorting |
| Depth Behind Panel | - | 85.16 mm |
| Depth Behind Panel [z] | 34.82 mm | 26.04 - 129.06 mm |
| Index Stops | Adjustable | Adjustable |
| Number of Decks | 2 | 2 - 9 |
| Number of Decks | - | 1 |
| Number of Decks | - | 11, 10, 12 |
| Number of Poles per Deck | 1 | 1 - 2 |
| Number of Positions | - | 5 |
| Number of Positions | - | 2 |
| Termination Style | Solder Lug | Solder Lug |
| Voltage Rating - AC | 115 V | 115 V |
| Voltage Rating - DC | 28 V | 28 V |
42D36 Series
SWITCH ROTARY 2-10POS 1A 115V
| Part | Circuit per Deck | Depth Behind Panel | Number of Poles per Deck | Termination Style | Angle of Throw | Contact Material | Index Stops | Actuator Type [diameter] | Actuator Type | Contact Timing | Actuator Length [x] | Number of Decks | Voltage Rating - AC | Voltage Rating - DC | Depth Behind Panel [z] | Number of Decks [custom] | Number of Positions [Max] | Number of Positions [Min] | Number of Decks |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Grayhill Inc. 42D36-07-1-AJN | SP10T | 85.16 mm | 1 | Solder Lug | 36 ° | Silver Alloy | Adjustable | 6.35 mm | Flatted | Non-Shorting | 11.1 mm | 7 | 115 V | 28 V | |||||
Grayhill Inc. 42D36-01-1-AJS | SP10T | 1 | Solder Lug | 36 ° | Silver Alloy | Adjustable | 6.35 mm | Flatted | Shorting | 11.1 mm | 115 V | 28 V | 26.04 mm | 1 | |||||
Grayhill Inc. 42D36-04-1-AJN | SP10T | 1 | Solder Lug | 36 ° | Silver Alloy | Adjustable | 6.35 mm | Flatted | Non-Shorting | 11.1 mm | 4 | 115 V | 28 V | ||||||
Grayhill Inc. 42D36-02-1-AJS | SP10T | 1 | Solder Lug | 36 ° | Silver Alloy | Adjustable | 6.35 mm | Flatted | Shorting | 11.1 mm | 2 | 115 V | 28 V | 34.82 mm | |||||
Grayhill Inc. 42D36-05-1-AJS | SP10T | 1 | Solder Lug | 36 ° | Silver Alloy | Adjustable | 6.35 mm | Flatted | Shorting | 11.1 mm | 5 | 115 V | 28 V | 61.19 mm | |||||
Grayhill Inc. 42D36-03-2-AJN | DP5T | 2 | Solder Lug | 36 ° | Silver Alloy | Adjustable | 6.35 mm | Flatted | Non-Shorting | 11.1 mm | 3 | 115 V | 28 V | 43.61 mm | 5 | 2 | |||
Grayhill Inc. 42D36-01-2-AJS | DP5T | 2 | Solder Lug | 36 ° | Silver Alloy | Adjustable | 6.35 mm | Flatted | Shorting | 11.1 mm | 115 V | 28 V | 26.04 mm | 1 | 5 | 2 | |||
Grayhill Inc. 42D36-02-2-AJN | DP5T | 2 | Solder Lug | 36 ° | Silver Alloy | Adjustable | 6.35 mm | Flatted | Non-Shorting | 11.1 mm | 2 | 115 V | 28 V | 34.82 mm | 5 | 2 | |||
Grayhill Inc. 42D36-04-2-AJN | DP5T | 2 | Solder Lug | 36 ° | Silver Alloy | Adjustable | 6.35 mm | Flatted | Non-Shorting | 11.1 mm | 4 | 115 V | 28 V | 5 | 2 | ||||
Grayhill Inc. 42D36-01-1-AJN | SP10T | 1 | Solder Lug | 36 ° | Silver Alloy | Adjustable | 6.35 mm | Flatted | Non-Shorting | 11.1 mm | 115 V | 28 V | 26.04 mm | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 90.97 | |
| 5 | $ 78.13 | |||
| 10 | $ 73.15 | |||
| 25 | $ 67.01 | |||
| 50 | $ 62.68 | |||
| 100 | $ 58.61 | |||
Description
General part information
42D36 Series
Rotary Switch 2 ~ 10 Position SP10T 1A (AC/DC) 115 VAC Panel Mount
Documents
Technical documentation and resources
