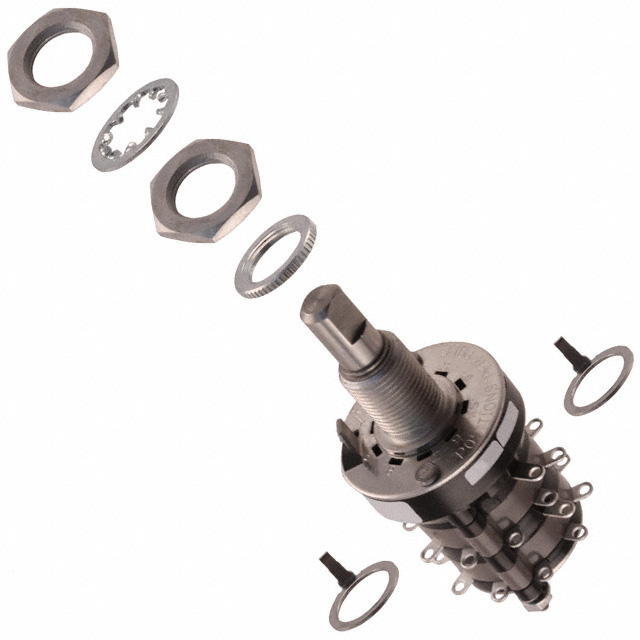

42D36-02-2-AJN

Active

Grayhill Inc.

SWITCH ROTARY 2-5POS 1A 115V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

42D36-02-2-AJN

Active

Grayhill Inc.

SWITCH ROTARY 2-5POS 1A 115V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 92.60
		5	$ 85.60
		10	$ 80.09
		25	$ 73.58
		50	$ 68.83
		100	$ 65.07

Description

General part information

42D36 Series

Rotary Switch 2 ~ 5 Position DP5T 1A (AC/DC) 115 VAC Panel Mount

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	42D36-02-2-AJN	42D36 Series

Actuator Length [x]	11.1 mm	11.1 mm
Actuator Type	Flatted	Flatted
Actuator Type [diameter]	6.35 mm	6.35 mm
Angle of Throw	36 °	36 °
Circuit per Deck	DP5T	SP10T, DP5T
Contact Material	Silver Alloy	Silver Alloy
Contact Timing	Non-Shorting	Non-Shorting, Shorting
Depth Behind Panel	-	85.16 mm
Depth Behind Panel [z]	34.82 mm	26.04 - 129.06 mm
Index Stops	Adjustable	Adjustable
Number of Decks	2	2 - 9
Number of Decks	-	1
Number of Decks	-	11, 10, 12
Number of Poles per Deck	2	1 - 2
Number of Positions [Max]	5	5
Number of Positions [Min]	2	2
Termination Style	Solder Lug	Solder Lug
Voltage Rating - AC	115 V	115 V
Voltage Rating - DC	28 V	28 V

42D36 Series

SWITCH ROTARY 2-10POS 1A 115V

Part	Circuit per Deck	Depth Behind Panel	Number of Poles per Deck	Termination Style	Angle of Throw	Contact Material	Index Stops	Actuator Type [diameter]	Actuator Type	Contact Timing	Actuator Length [x]	Number of Decks	Voltage Rating - AC	Voltage Rating - DC	Depth Behind Panel [z]	Number of Decks [custom]	Number of Positions [Max]	Number of Positions [Min]
Grayhill Inc. 42D36-07-1-AJN	SP10T	85.16 mm	1	Solder Lug	36 °	Silver Alloy	Adjustable	6.35 mm	Flatted	Non-Shorting	11.1 mm	7	115 V	28 V
Grayhill Inc. 42D36-01-1-AJS	SP10T		1	Solder Lug	36 °	Silver Alloy	Adjustable	6.35 mm	Flatted	Shorting	11.1 mm		115 V	28 V	26.04 mm	1
Grayhill Inc. 42D36-04-1-AJN	SP10T		1	Solder Lug	36 °	Silver Alloy	Adjustable	6.35 mm	Flatted	Non-Shorting	11.1 mm	4	115 V	28 V
Grayhill Inc. 42D36-02-1-AJS	SP10T		1	Solder Lug	36 °	Silver Alloy	Adjustable	6.35 mm	Flatted	Shorting	11.1 mm	2	115 V	28 V	34.82 mm
Grayhill Inc. 42D36-05-1-AJS	SP10T		1	Solder Lug	36 °	Silver Alloy	Adjustable	6.35 mm	Flatted	Shorting	11.1 mm	5	115 V	28 V	61.19 mm
Grayhill Inc. 42D36-03-2-AJN	DP5T		2	Solder Lug	36 °	Silver Alloy	Adjustable	6.35 mm	Flatted	Non-Shorting	11.1 mm	3	115 V	28 V	43.61 mm		5	2
Grayhill Inc. 42D36-01-2-AJS	DP5T		2	Solder Lug	36 °	Silver Alloy	Adjustable	6.35 mm	Flatted	Shorting	11.1 mm		115 V	28 V	26.04 mm	1	5	2
Grayhill Inc. 42D36-02-2-AJN	DP5T		2	Solder Lug	36 °	Silver Alloy	Adjustable	6.35 mm	Flatted	Non-Shorting	11.1 mm	2	115 V	28 V	34.82 mm		5	2
Grayhill Inc. 42D36-04-2-AJN	DP5T		2	Solder Lug	36 °	Silver Alloy	Adjustable	6.35 mm	Flatted	Non-Shorting	11.1 mm	4	115 V	28 V			5	2
Grayhill Inc. 42D36-01-1-AJN	SP10T		1	Solder Lug	36 °	Silver Alloy	Adjustable	6.35 mm	Flatted	Non-Shorting	11.1 mm		115 V	28 V	26.04 mm	1
