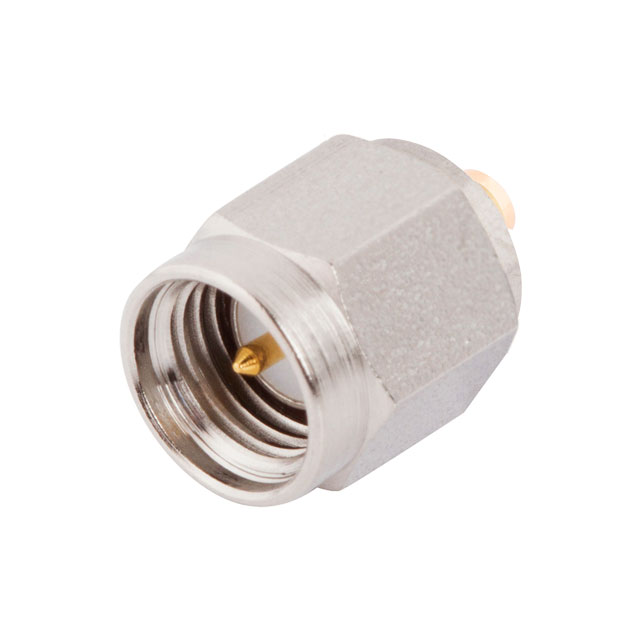

SF2911-60242

Active

Amphenol SV Microwave

CONN SMA PLUG STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN SMA PLUG STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Part	Frequency - Max [Max]	Housing Color	Contact Termination	Features	Impedance	Center Contact Plating	Connector Type	Mating Cycles	Number of Ports	Shield Termination	Insertion Loss	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Dielectric Material	Body Material	Includes	Mounting Type	Cable Group	Cable Group	Mounting Feature
Amphenol SV Microwave SF2911-60958	26.5 GHz	Silver	Compression	Mounting Hardware	50 Ohms	Gold	Male Pin Plug	500	1	Screw	0.154 dB	SMA	-65 ░C	165 °C	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Stainless Steel	1 Connector 2 Screws	Board Edge End Launch
Amphenol SV Microwave SF2911-60172	18 GHz	Silver	Solder		50 Ohms	Gold	Male Pin Plug	500	1	Solder		SMA			Beryllium Copper	Polytetrafluoroethylene (PTFE)	Stainless Steel		Free Hanging (In-Line)	Flexible	0.047 in
Amphenol SV Microwave SF2911-60973-2S	26.5 GHz	Silver	Compression	Mounting Hardware	50 Ohms	Gold	Male Pin Plug	500		Screw		SMA	-65 ░C	165 °C	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Stainless Steel		Surface Mount			Flange
Amphenol SV Microwave SF2911-60973-1S	26.5 GHz	Silver	Compression	Mounting Hardware	50 Ohms	Gold	Male Pin Plug	500		Screw		SMA	-65 ░C	165 °C	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Stainless Steel		Surface Mount			Flange
Amphenol SV Microwave SF2911-60242		Silver	Solder		50 Ohms		Male Pin Plug	500	1	Solder		SMA							Free Hanging (In-Line)		0.065 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
