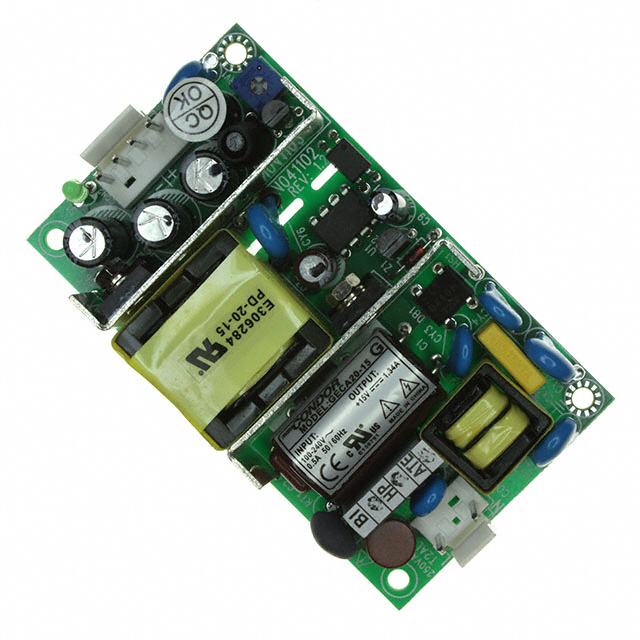

GECA20-15G

Obsolete

SL POWER / Advanced Energy

AC/DC CONVERTER 15V 20W

Search across all available documentation for this part.

Obsolete

SL POWER / Advanced Energy

AC/DC CONVERTER 15V 20W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 1 Output 15V 90 ~ 264 VAC Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	GECA20-15G	GECA20 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE, CB	CE, CB
Current - Output 1	-	1.67 - 840 A
Current - Output 1 [custom]	1.34 A	1.34 A
Efficiency	80 %	80 %
Features	Adjustable Output, Universal Input	Adjustable Output, Universal Input
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	45 °C	45 °C
Operating Temperature [Min]	0 °C	0 °C
Power (Watts)	20 W	20 W
Size / Dimension [x]	89.1 mm	89.1 mm
Size / Dimension [x]	3.5 in	3.5 in
Size / Dimension [y]	51 mm	51 mm
Size / Dimension [y]	2 in	2 in
Size / Dimension [z]	21.6 mm	21.6 mm
Size / Dimension [z]	0.85 "	0.85 "
Type	Open Frame	Open Frame
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Output 1	15 V	5.1 - 24 V

AC/DC CONVERTER 12V 20W

Part	Applications	Power (Watts)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Output 1	Operating Temperature [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Number of Outputs	Mounting Type	Current - Output 1	Efficiency	Features	Type	Current - Output 1 [custom]
SL POWER / Advanced Energy GECA20-12G	ITE (Commercial)	20 W	89.1 mm	3.5 in	51 mm	21.6 mm	0.85 "	2 in	12 V	45 °C	90 VAC	264 VAC	CB, CE	1	Chassis Mount	1.67 A	80 %	Adjustable Output, Universal Input	Open Frame
SL POWER / Advanced Energy GECA20-24G	ITE (Commercial)	20 W	89.1 mm	3.5 in	51 mm	21.6 mm	0.85 "	2 in	24 V	45 °C	90 VAC	264 VAC	CB, CE	1	Chassis Mount	840 mA	80 %	Adjustable Output, Universal Input	Open Frame
SL POWER / Advanced Energy GECA20-15G	ITE (Commercial)	20 W	89.1 mm	3.5 in	51 mm	21.6 mm	0.85 "	2 in	15 V	45 °C	90 VAC	264 VAC	CB, CE	1	Chassis Mount		80 %	Adjustable Output, Universal Input	Open Frame	1.34 A
SL POWER / Advanced Energy GECA20-5G	ITE (Commercial)	20 W	89.1 mm	3.5 in	51 mm	21.6 mm	0.85 "	2 in	5.1 V	45 °C	90 VAC	264 VAC	CB, CE	1	Chassis Mount	4 A	80 %	Adjustable Output, Universal Input	Open Frame
