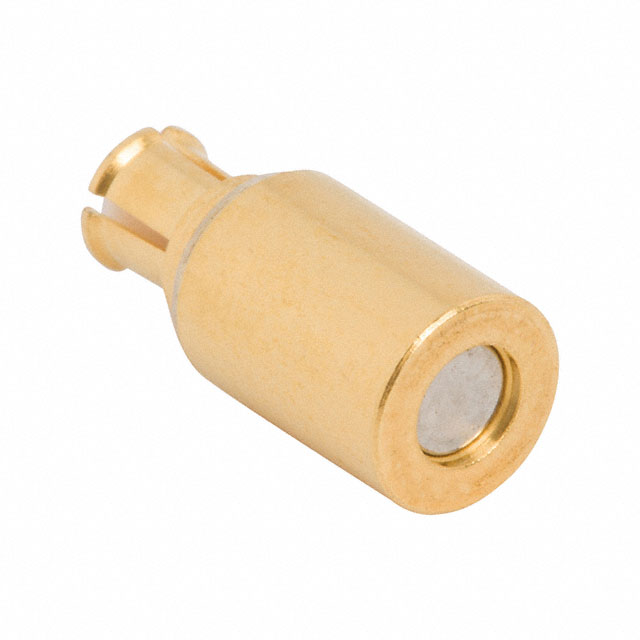

SMP-FS-T2

Active

AMPHENOL RF

SMP TERMINATOR PLUG, 2 WATT, 50

Deep-Dive with AI

Search across all available documentation for this part.

SMP-FS-T2

Active

AMPHENOL RF

SMP TERMINATOR PLUG, 2 WATT, 50

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SMP-FS-T2	SMP-FS Series

Body Finish	Gold	Gold
Body Material	Beryllium Copper	Brass, Beryllium Copper
Cable Group	-	RG-174, 316, RG-178, Semi Rigid, RG-405
Cable Group	-	0.047 in
Center Contact Material	-	Brass, Beryllium Copper
Center Contact Plating	-	Gold
Connector Type	Plug, Female Socket	Male Pin, Jack, Plug, Female Socket
Contact Finish	Gold	Gold
Contact Material	Beryllium Copper	Beryllium Copper
Contact Termination	-	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	-	Snap-On
Features	-	Limited Detent, Smooth Bore, Full Detent
Frequency - Max [Max]	26.5 GHz	3 - 6000 GHz
Housing Color	-	Gold
Impedance	50 Ohms	50 Ohms
Includes	-	1 Ferrule, 1 Contact, 1 Connector
Mating Cycles	-	500
Mounting Type	Free Hanging, Cap	Through Hole, Free Hanging (In-Line), Free Hanging, Cap
Number of Ports	-	1
Operating Temperature	-	-65 ░C
Operating Temperature	-	165 °C
Shield Termination	-	Solder, Crimp

SMP-FS Series

CONN SMP JACK STR 50 OHM PCB

Part	Center Contact Plating	Connector Type	Frequency - Max [Max]	Shield Termination	Housing Color	Center Contact Material	Body Finish	Features	Mounting Type	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Body Material	Mating Cycles	Fastening Type	Number of Ports	Contact Termination	Cable Group	Includes	Cable Group	Contact Material	Contact Finish
AMPHENOL RF SMP-FS-LDPCT	Gold	Jack, Male Pin	12 GHz	Solder	Gold	Brass	Gold	Limited Detent	Through Hole	50 Ohms	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Brass	500	Snap-On	1	Solder
AMPHENOL RF SMP-FS-C08-1-R	Gold	Female Socket, Plug	6000 MHz	Crimp	Gold	Beryllium Copper	Gold		Free Hanging (In-Line)	50 Ohms	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Beryllium Copper, Brass		Snap-On	1	Solder	316, RG-174	1 Connector, 1 Contact, 1 Ferrule
AMPHENOL RF SMP-FS-C19	Gold	Female Socket, Plug	6000 MHz	Crimp	Gold	Beryllium Copper	Gold		Free Hanging (In-Line)	50 Ohms	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Beryllium Copper		Snap-On	1	Solder	RG-178	1 Connector, 1 Contact, 1 Ferrule
AMPHENOL RF SMP-FS-SBPCT	Gold	Jack, Male Pin	12 GHz	Solder	Gold	Brass	Gold	Smooth Bore	Through Hole	50 Ohms	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Brass	500	Snap-On	1	Solder
AMPHENOL RF SMP-FS-C09	Gold	Female Socket, Jack	3 GHz	Solder	Gold	Beryllium Copper	Gold		Free Hanging (In-Line)	50 Ohms	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Beryllium Copper		Snap-On	1	Solder	Semi Rigid		0.047 in
AMPHENOL RF SMP-FS-C06	Gold	Female Socket, Jack	26.5 GHz	Solder	Gold	Beryllium Copper	Gold		Free Hanging (In-Line)	50 Ohms	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Beryllium Copper		Snap-On	1	Solder	Semi Rigid		0.047 in
AMPHENOL RF SMP-FS-C07-5	Gold	Female Socket, Plug	26.5 GHz	Solder	Gold	Beryllium Copper	Gold		Free Hanging (In-Line)	50 Ohms	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Beryllium Copper		Snap-On	1	Solder	RG-405
AMPHENOL RF SMP-FS-T2		Female Socket, Plug	26.5 GHz				Gold		Cap, Free Hanging	50 Ohms			Polytetrafluoroethylene (PTFE)	Beryllium Copper								Beryllium Copper	Gold
AMPHENOL RF SMP-FS-FDPCT	Gold	Jack, Male Pin	12 GHz	Solder	Gold	Brass	Gold	Full Detent	Through Hole	50 Ohms	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Brass	500	Snap-On	1	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 50.97
		10	$ 46.77
		25	$ 44.98
		50	$ 43.48
		100	$ 41.08
		250	$ 39.88

Description

General part information

SMP-FS Series

Terminator Coax Connector Plug, Female Socket SMP 50 Ohms

Documents

Technical documentation and resources

No documents available
