SMP-FS-C06

Active

AMPHENOL RF

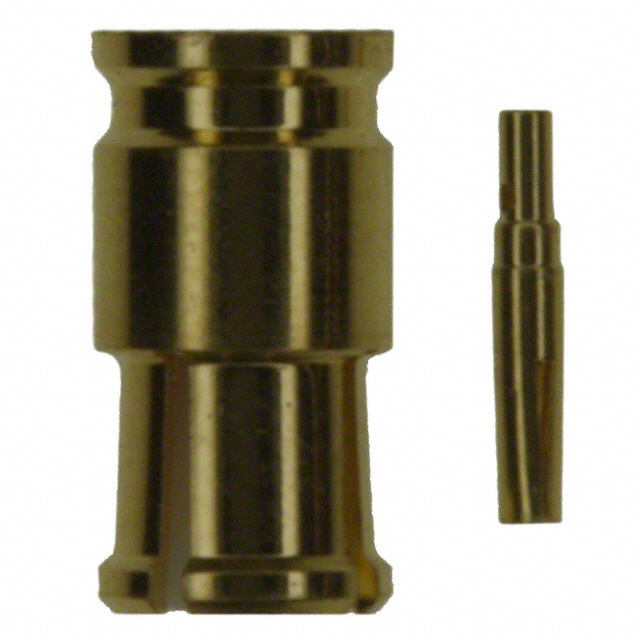

CONN SMP 0HZ TO 26.5GHZ 50OHM SOLDER ST CABLE MOUNT RCP GOLD

Deep-Dive with AI

Search across all available documentation for this part.

SMP-FS-C06

Active

AMPHENOL RF

CONN SMP 0HZ TO 26.5GHZ 50OHM SOLDER ST CABLE MOUNT RCP GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 23.79
		10	$ 20.83
		25	$ 19.93
		50	$ 19.29
		100	$ 18.64
		300	$ 17.61
		500	$ 17.10

Description

General part information

SMP-FS Series

SMP Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SMP-FS-C06	SMP-FS Series

Body Finish	Gold	Gold
Body Material	Beryllium Copper	Brass, Beryllium Copper
Cable Group	Semi Rigid	RG-174, 316, RG-178, Semi Rigid, RG-405
Cable Group	0.047 in	0.047 in
Center Contact Material	Beryllium Copper	Brass, Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Type	Female Socket, Jack	Male Pin, Jack, Plug, Female Socket
Contact Finish	-	Gold
Contact Material	-	Beryllium Copper
Contact Termination	Solder	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On	Snap-On
Features	-	Limited Detent, Smooth Bore, Full Detent
Frequency - Max [Max]	26.5 GHz	3 - 6000 GHz
Housing Color	Gold	Gold
Impedance	50 Ohms	50 Ohms
Includes	-	1 Ferrule, 1 Contact, 1 Connector
Mating Cycles	-	500
Mounting Type	Free Hanging (In-Line)	Through Hole, Free Hanging (In-Line), Free Hanging, Cap
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Solder	Solder, Crimp

SMP-FS Series

CONN SMP JACK STR 50 OHM PCB

Part	Center Contact Plating	Connector Type	Frequency - Max [Max]	Shield Termination	Housing Color	Center Contact Material	Body Finish	Features	Mounting Type	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Body Material	Mating Cycles	Fastening Type	Number of Ports	Contact Termination	Cable Group	Includes	Cable Group	Contact Material	Contact Finish
AMPHENOL RF SMP-FS-LDPCT	Gold	Jack, Male Pin	12 GHz	Solder	Gold	Brass	Gold	Limited Detent	Through Hole	50 Ohms	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Brass	500	Snap-On	1	Solder
AMPHENOL RF SMP-FS-C08-1-R	Gold	Female Socket, Plug	6000 MHz	Crimp	Gold	Beryllium Copper	Gold		Free Hanging (In-Line)	50 Ohms	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Beryllium Copper, Brass		Snap-On	1	Solder	316, RG-174	1 Connector, 1 Contact, 1 Ferrule
AMPHENOL RF SMP-FS-C19	Gold	Female Socket, Plug	6000 MHz	Crimp	Gold	Beryllium Copper	Gold		Free Hanging (In-Line)	50 Ohms	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Beryllium Copper		Snap-On	1	Solder	RG-178	1 Connector, 1 Contact, 1 Ferrule
AMPHENOL RF SMP-FS-SBPCT	Gold	Jack, Male Pin	12 GHz	Solder	Gold	Brass	Gold	Smooth Bore	Through Hole	50 Ohms	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Brass	500	Snap-On	1	Solder
AMPHENOL RF SMP-FS-C09	Gold	Female Socket, Jack	3 GHz	Solder	Gold	Beryllium Copper	Gold		Free Hanging (In-Line)	50 Ohms	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Beryllium Copper		Snap-On	1	Solder	Semi Rigid		0.047 in
AMPHENOL RF SMP-FS-C06	Gold	Female Socket, Jack	26.5 GHz	Solder	Gold	Beryllium Copper	Gold		Free Hanging (In-Line)	50 Ohms	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Beryllium Copper		Snap-On	1	Solder	Semi Rigid		0.047 in
AMPHENOL RF SMP-FS-C07-5	Gold	Female Socket, Plug	26.5 GHz	Solder	Gold	Beryllium Copper	Gold		Free Hanging (In-Line)	50 Ohms	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Beryllium Copper		Snap-On	1	Solder	RG-405
AMPHENOL RF SMP-FS-T2		Female Socket, Plug	26.5 GHz				Gold		Cap, Free Hanging	50 Ohms			Polytetrafluoroethylene (PTFE)	Beryllium Copper								Beryllium Copper	Gold
AMPHENOL RF SMP-FS-FDPCT	Gold	Jack, Male Pin	12 GHz	Solder	Gold	Brass	Gold	Full Detent	Through Hole	50 Ohms	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Brass	500	Snap-On	1	Solder
