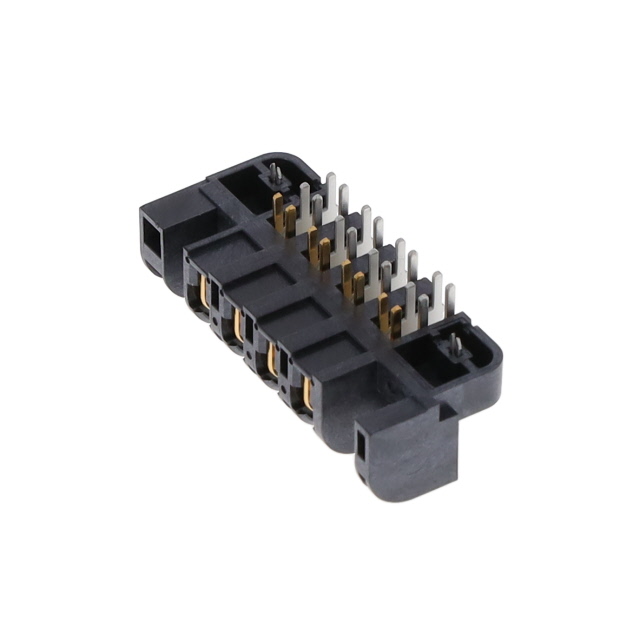

FMPS-04-01-L-S-RA-LC

Active

Samtec Inc.

CONN SOCKET STRIP SKT 4POWER POS 1.88MM/3.12MM SOLDER RA SIDE ENTRY THRU-HOLE TRAY

Search across all available documentation for this part.

Active

Samtec Inc.

CONN SOCKET STRIP SKT 4POWER POS 1.88MM/3.12MM SOLDER RA SIDE ENTRY THRU-HOLE TRAY

Technical Specifications

Parameters and characteristics for this part

Specification	FMPS-04-01-L-S-RA-LC

Color	Black
Connector Type	Receptacle, Female Blade Sockets
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Current Rating (Amps)	30 A
Features	Flange, Board Lock
Material - Insulation	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Termination	Solder
Voltage Rating	742 V

Part	Connector Type	Contact Finish	Number of Positions	Current Rating (Amps)	Voltage Rating	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Material - Insulation	Pitch [x]	Pitch [x]	Features	Termination	Color	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type
Samtec Inc. FMPS-04-01-L-S-RA-LC	Receptacle Female Blade Sockets	Gold	4	30 A	742 V	Copper Alloy	10 Áin	0.25 Ám	1	Liquid Crystal Polymer (LCP)	5 mm	0.197 in	Board Lock Flange	Solder	Black	-55 °C	125 °C	Through Hole Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Receptacle, Female Blade Sockets Connector Solder 0.197" (5.00mm) Through Hole, Right Angle
