M3AWK-2606R
Active3M
IDC CABLE - MSC26K/MC26M/MPL26K
Deep-Dive with AI
Search across all available documentation for this part.
M3AWK-2606R
Active3M
IDC CABLE - MSC26K/MC26M/MPL26K
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M3AWK-2606R | M3AWK Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Ribbon, Multiple | Multiple, Twisted Pair (Flat), Ribbon, Multiple |
| Connector Type | Socket to Plug | Socket to Plug |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Features | Flange, Polarizing Key | Flange, Polarizing Key |
| Length | 152.4 mm | 1.52 - 508 m |
| Length | 6 " | 6 " |
| Length | 0.5 ' | 0.5 ' |
| Length | - | 1.02 - 914.4 m |
| Length | - | 1.5 - 3.34 ft |
| Length | - | 1.67 - 5 ' |
| Number of Positions | 26 | 10 - 60 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
M3AWK Series
IDC CABLE - MSC16K/MC16F/MPL16K
| Part | Contact Finish | Color | Length [x] | Length [x] | Pitch - Cable | Pitch - Cable | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Connector Type | Features | Cable Termination | Shielding | Pitch - Connector | Pitch - Connector | Number of Positions | Number of Positions | Length | Length | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Gold | Multiple, Twisted Pair (Flat) | 1.02 m | 3.34 ft | 0.05 " | 1.27 mm | 0.76 Ám | 30 Áin | 2 | Socket to Plug | Flange, Polarizing Key | IDC | Unshielded | 0.1 in | 2.54 mm | 16 | ||||||
Gold | 914.4 mm | 3 ft | 0.05 " | 1.27 mm | 0.76 Ám | 30 Áin | 2 | Socket to Plug | Flange, Polarizing Key | IDC | Unshielded | 0.1 in | 2.54 mm | 24 | |||||||
Gold | Multiple, Twisted Pair (Flat) | 0.05 " | 1.27 mm | 0.76 Ám | 30 Áin | 2 | Socket to Plug | Flange, Polarizing Key | IDC | Unshielded | 0.1 in | 2.54 mm | 26 | 1.52 m | 5 ' | ||||||
Gold | Multiple, Ribbon | 0.05 " | 1.27 mm | 0.76 Ám | 30 Áin | 2 | Socket to Plug | Flange, Polarizing Key | IDC | Unshielded | 0.1 in | 2.54 mm | 26 | 152.4 mm | 6 " | 0.5 ' | |||||
Gold | Multiple, Twisted Pair (Flat) | 0.05 " | 1.27 mm | 0.76 Ám | 30 Áin | 2 | Socket to Plug | Flange, Polarizing Key | IDC | Unshielded | 0.1 in | 2.54 mm | 34 | 508 mm | 1.67 ft | ||||||
Gold | 457.2 mm | 1.5 ft | 0.05 " | 1.27 mm | 0.76 Ám | 30 Áin | 2 | Socket to Plug | Flange, Polarizing Key | IDC | Unshielded | 0.1 in | 2.54 mm | 24 | |||||||
Gold | Multiple, Ribbon | 914.4 mm | 3 ft | 0.05 " | 1.27 mm | 0.76 Ám | 30 Áin | 2 | Socket to Plug | Flange, Polarizing Key | IDC | Unshielded | 0.1 in | 2.54 mm | 40 | ||||||
Gold | 0.05 " | 1.27 mm | 0.76 Ám | 30 Áin | 2 | Socket to Plug | Flange, Polarizing Key | IDC | Unshielded | 0.1 in | 2.54 mm | 26 | 152.4 mm | 6 " | 0.5 ' | ||||||
Gold | 457.2 mm | 1.5 ft | 0.05 " | 1.27 mm | 0.76 Ám | 30 Áin | 2 | Socket to Plug | Flange, Polarizing Key | IDC | Unshielded | 0.1 in | 2.54 mm | 30 | |||||||
Gold | 457.2 mm | 1.5 ft | 0.05 " | 1.27 mm | 0.76 Ám | 30 Áin | 2 | Socket to Plug | Flange, Polarizing Key | IDC | Unshielded | 0.1 in | 2.54 mm | 60 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 21.90 | |
| 10 | $ 16.87 | |||
| 25 | $ 15.27 | |||
| 50 | $ 14.19 | |||
| 100 | $ 13.21 | |||
| 250 | $ 12.06 | |||
| 500 | $ 11.28 | |||
Description
General part information
M3AWK Series

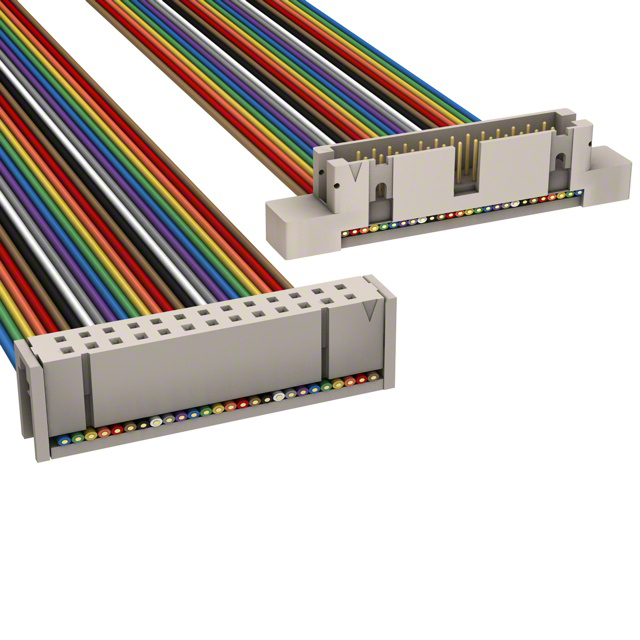

26 Position Cable Assembly Rectangular Socket to Plug 0.500' (152.40mm, 6.00")
