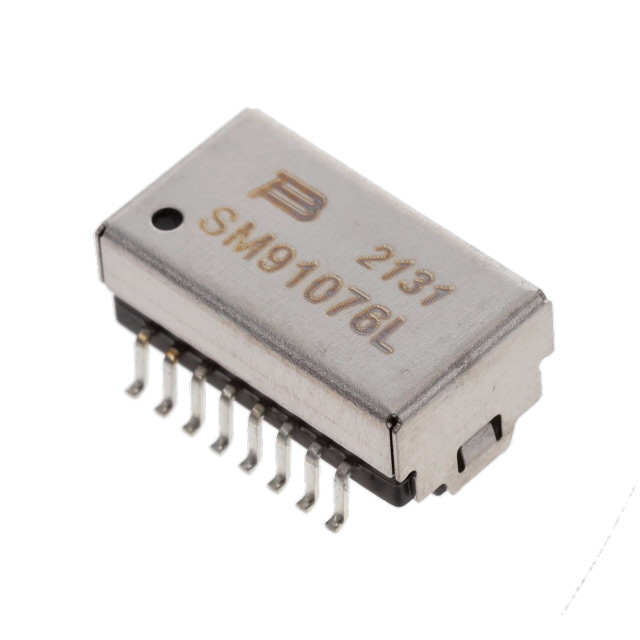

SM91076L-E

Active

Bourns Inc.

TRANSFORMER, 10/100 BASE-T, 0.5UH, 1.5KV, 1 PORT, -40°C TO 125°C, 1:1, SURFACE MOUNT

Search across all available documentation for this part.

Active

Bourns Inc.

TRANSFORMER, 10/100 BASE-T, 0.5UH, 1.5KV, 1 PORT, -40°C TO 125°C, 1:1, SURFACE MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	SM91076L-E

Height - Seated (Max) [Max] [z]	0.24 in
Height - Seated (Max) [Max] [z]	6.1 mm
Inductance	350 µH
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Transformer Type	LAN 10/100 Base-T
Turns Ratio - Primary:Secondary	1:1

Part	Transformer Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Inductance	Turns Ratio - Primary:Secondary	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Bourns Inc. SM91076L-E	LAN 10/100 Base-T	Surface Mount	125 °C	-40 °C	350 µH	1:1	0.24 in	6.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

350µH LAN 10/100 Base-T Pulse Transformer 1:1 Surface Mount
