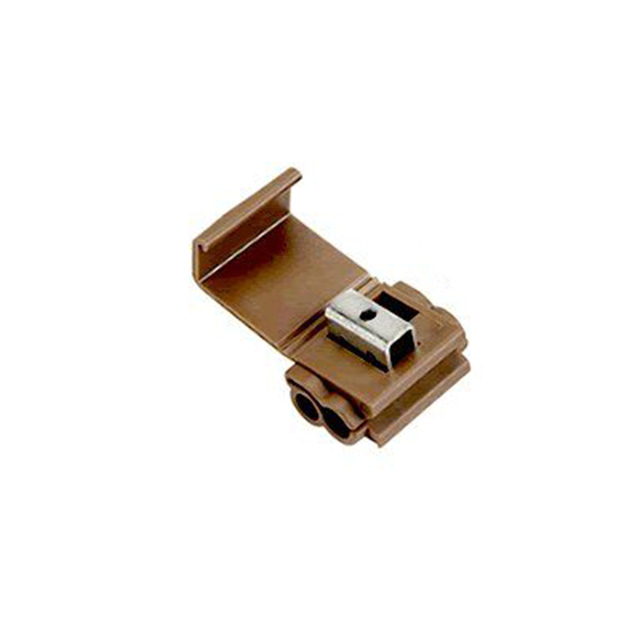

567-BOX
Unknown3M (TC)
CONN INLINE TAP 14-18 AWG IDC
Deep-Dive with AI
Search across all available documentation for this part.
567-BOX
Unknown3M (TC)
CONN INLINE TAP 14-18 AWG IDC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 567-BOX |
|---|---|
| Color | Brown |
| Features | Hinged Lid(s), Flame Retardant |
| Insulation | Fully Insulated |
| Number of Wire Entries | 2 |
| Terminal Type | Inline, Tap (Suitcase) |
| Termination | IDC |
| Wire Gauge [Max] | 18 AWG, 12 AWG |
| Wire Gauge [Min] | 14 AWG, 10 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
567 Series
Terminal Inline, Tap (Suitcase) Connector IDC 10-12 AWG; 14-18 AWG Brown
