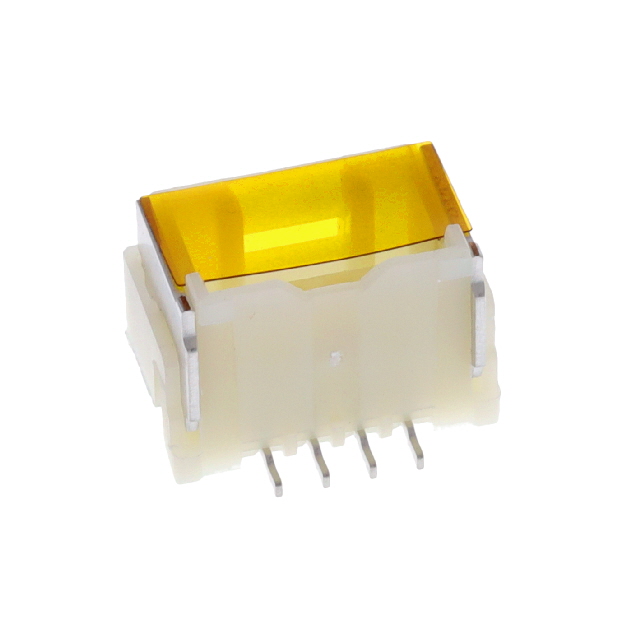

Specification	10135177-04111LF

Connector Type	Receptacle
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Type	Forked
Current Rating	2 A
Fastening Type	Latch Holder
Features	Solder Retention, Pick and Place
Insulation Height	0.254 in
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.059 in
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	100 VAC

10135177 Series

Part	Number of Positions	Contact Finish - Post	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish - Mating	Style	Features	Voltage Rating	Number of Positions Loaded	Connector Type	Fastening Type	Material Flammability Rating	Current Rating	Pitch - Mating	Termination	Number of Rows	Mounting Type	Insulation Height	Contact Type	Contact Material	Insulation Material
Amphenol ICC (FCI) 10135177-08111LF	8	Tin	125 °C	-40 °C	Tin	Board Cable/Wire	Pick and Place Solder Retention	100 VAC	All	Receptacle	Latch Holder	UL94 V-0	2 A	0.059 in	Solder	1	Surface Mount	0.254 in	Forked	Copper Alloy	Thermoplastic
Amphenol ICC (FCI) 10135177-11111LF	11	Tin	125 °C	-40 °C	Tin	Board Cable/Wire	Pick and Place Solder Retention	100 VAC	All	Receptacle	Latch Holder	UL94 V-0	2 A	0.059 in	Solder	1	Surface Mount	0.254 in	Forked	Copper Alloy	Thermoplastic
Amphenol ICC (FCI) 10135177-10111LF	10	Tin	125 °C	-40 °C	Tin	Board Cable/Wire	Pick and Place Solder Retention	100 VAC	All	Receptacle	Latch Holder	UL94 V-0	2 A	0.059 in	Solder	1	Surface Mount	0.254 in	Forked	Copper Alloy	Thermoplastic
Amphenol ICC (FCI) 10135177-07111LF	7	Tin	125 °C	-40 °C	Tin	Board Cable/Wire	Pick and Place Solder Retention	100 VAC	All	Receptacle	Latch Holder	UL94 V-0	2 A	0.059 in	Solder	1	Surface Mount	0.254 in	Forked	Copper Alloy	Thermoplastic
Amphenol ICC (FCI) 10135177-12111LF	12	Tin	125 °C	-40 °C	Tin	Board Cable/Wire	Pick and Place Solder Retention	100 VAC	All	Receptacle	Latch Holder	UL94 V-0	2 A	0.059 in	Solder	1	Surface Mount	0.254 in	Forked	Copper Alloy	Thermoplastic
Amphenol ICC (FCI) 10135177-14111LF	14	Tin	125 °C	-40 °C	Tin	Board Cable/Wire	Pick and Place Solder Retention	100 VAC	All	Receptacle	Latch Holder	UL94 V-0	2 A	0.059 in	Solder	1	Surface Mount	0.254 in	Forked	Copper Alloy	Thermoplastic
Amphenol ICC (FCI) 10135177-03111LF	3	Tin	125 °C	-40 °C	Tin	Board Cable/Wire	Pick and Place Solder Retention	100 VAC	All	Receptacle	Latch Holder	UL94 V-0	2 A	0.059 in	Solder	1	Surface Mount	0.254 in	Forked	Copper Alloy	Thermoplastic
Amphenol ICC (FCI) 10135177-05111LF	5	Tin	125 °C	-40 °C	Tin	Board Cable/Wire	Pick and Place Solder Retention	100 VAC	All	Receptacle	Latch Holder	UL94 V-0	2 A	0.059 in	Solder	1	Surface Mount	0.254 in	Forked	Copper Alloy	Thermoplastic
Amphenol ICC (FCI) 10135177-04111LF	4	Tin	125 °C	-40 °C	Tin	Board Cable/Wire	Pick and Place Solder Retention	100 VAC	All	Receptacle	Latch Holder	UL94 V-0	2 A	0.059 in	Solder	1	Surface Mount	0.254 in	Forked	Copper Alloy	Thermoplastic
Amphenol ICC (FCI) 10135177-15111LF	15	Tin	125 °C	-40 °C	Tin	Board Cable/Wire	Pick and Place Solder Retention	100 VAC	All	Receptacle	Latch Holder	UL94 V-0	2 A	0.059 in	Solder	1	Surface Mount	0.254 in	Forked	Copper Alloy	Thermoplastic
